AC Infinity Black Ventilation Grille 18, for PC Computer AV Electronic Cabinets, Also mounts Three 120mm Fans

(276 Reviews)

Price
$11.99

Quantity
(10000 available )

Total Price
Share
20 Ratings
17
0
2
0
1
Reviews
  • nightflyr

    > 24 hour

    In todays market of high air flow cases they all seem to use the same size mesh pattern. These vent panels allow much greater air flow with lower restriction. If you invest a little time in keeping your computer clean these make for an easy and functional upgrade.

  • Lks835

    > 24 hour

    I purchased this AC Infinity ventilation grill kits for my window fan project. The aluminum plate and spiral guards were made in precision. I could mount my 4000 RPM monster computer fans on the plate precisely. The result was a professional look, ultra-thin, powerful & crazy window fan for my guest room. I definitely will buy it again.

  • deusex

    > 24 hour

    Would have been nice cover for computer bottom fans. Unfortunately it is not made for computer. The gap between fans is to big. Computer fans are touching each other.

  • saywhat?

    > 24 hour

    I made a custom amplifier cooler. Turned out great and looks good too.

  • Andrew

    > 24 hour

    Perfect professional look

  • Luis Mora

    > 24 hour

    I have the thermaltake v200 case and just wanted more air flow from the front this product was easy to install and great value for the money not cheaply made

  • Rick

    > 24 hour

    Grille was shipped to me in a zip-loc type bag, no box, no padded envelope just a plastic bag. Very thin aluminum material. It arrived bent of course and would not lay flat to the side of the cabinet until I drilled several more holes in it to fasten it down. It was also a real pita to install the included mesh with the fans. I gave up and just used the included fan guards, much easier.

  • Rico

    > 24 hour

    Dont mind my mess or weak setup. My daughter is 18 months old so i have to hide my gaming pc in this computer desk but wanted some ventilation. Originally I didnt intend to install fans but slickdeals kills me. x.x lol

  • Liao

    > 24 hour

    I used it to DIY a perfect window fan for kitchen. the panels texture pretty good.

  • William villanueva leon

    > 24 hour

    Aluminio cepillado con excelente terminación y No Endeble ., En general muy satisfecho . cumple con las especificaciones señaladas y con mis expectativas. Gracias.

Overview

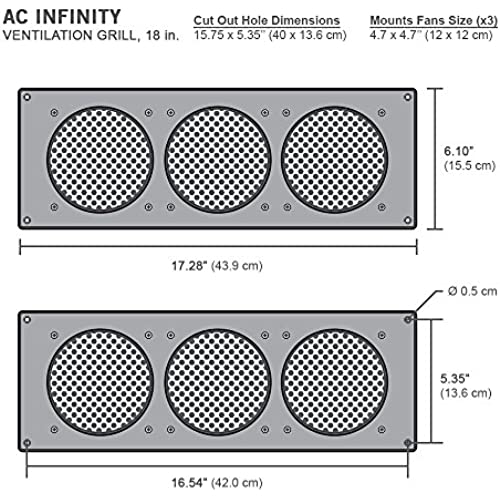

The Cabinet Ventilation Grille is a 17.5 by 6.1 inch metal grille that can be installed into cabinets and walls to help increase ventilation. It can also be used in conjunction with a fan system to act as a passive intake or exhaust vent. The kit includes optional 120mm fan guards and hardware to secure three 120mm fans, the most popular size for computers and DIY applications, onto the grille. To mount your fans and grille into your cabinet or wall, you would need to cut a square hole approximately 10.12 by 5.35 inches. Features a CNC machined aluminum frame with a brushed black finish; pre-secured to a steel honeycomb grille with four screws. Information on the additional included hardware can be found below.

Hardware

Includes four wood screws and four machine screws with nuts to mount the ventilation grille onto a cabinet or wall. Also includes twelve 1.25-inch long machine screws with nuts to mount three 120 mm fans with the included three 120mm fan guards onto the ventilation grille.
