Bay Marine Supply Busbar - Made in USA – 4-Post 250 Amp Stainless Steel Distribution Block - 3/8 Red

(155 Reviews)
Price
$11.34
None
Quantity
(30000 available )
Total Price
Share
55 Ratings
51
4
0
0
0
Reviews

  • Israel Larson DVM

    > 24 hour

    Used on my race car as a power distribution block in the engine bay. The battery is in the trunk of my car. I used this to power cooling fans, the starter motor, and other accessories in the engine bay. It is nice because it has large 10mm studs for large wires, but also has some smaller phillips screws for smaller power wires and terminals. Has a nice cover with plastic acorn nuts as well. Overall a nice piece and exactly what I needed for my project. I would absolutely buy again.

  • Mary

    > 24 hour

    Good quality materials, solid built, anti corrosive stainless steel. what more could you ask for?

  • ABE

    > 24 hour

    Work as suppose to.

  • Dr Bob

    > 24 hour

    I was looking at installing some accessory lights on my vehicle and I realized I needed some type of intervention. I already had four or five accessories attached to the positive terminal of my battery and it was a mess. This distribution block provides a nice neat point of attachment for all that power and really cleaned up my situation. So far its held up very well and everything seems to hold in place securely. Didnt experience any problem with the studs stripping out of their plastic base fixture. My only concern is how well the nylon cover nuts will hold in place when subjected to constant vibration such as a washboard road. Pleased with the purchase so far.

  • C. Holt

    > 24 hour

    This was great for cleaning up the battery bay of the RV. Since Ive added the two LiFePO 4 batteries in parallel, there were 4 or 5 cables attached to the positive of one battery, so with this bus bar, I was able to get that down to 2. They included a little tube of NoOx and that was a great bonus. Used a couple of self tapping screws to mount it to the frame rail, got everything snugged down and applied a light coating of the grease to all exposed connectors. Really appreciate the included cover too. Much less likely Ill be shorting out these high current connections.

  • Yusuf tibazi

    > 24 hour

    I am new to electrical work. I am building a van. I bought an inferior bus bar before I got these. They are sturdy and excellent. I wish I would have bought them first.

  • Bradley faircloth

    > 24 hour

    When you loosen the nuts the studs just dangling there but other than that it seems like a well made product.

  • Michael K. Lacy

    > 24 hour

    Exactly as advertised and very well made. All attachments came with it a real plus.

  • Vicars Hodge

    > 24 hour

    Exactly as expected. High quality.

  • Bill G.

    > 24 hour

    Busbar is as described.

Bay Marine Supply offers busbars in various sizes to make sure you find the busbar that fits your needs. The busbars are built to last and comes with insulation covers. They are high quality power distribution blocks and allow for multiple connections to positive and negative systems. Each block can maintain multiple connections, making them flexible and robust for a variety of uses. Available in red and black, with your choice of stud sizes. Each purchase comes with complimentary NO-OX-ID electrical grease to help prevent corrosion and galling.

Busbar Bay Marine Supply Mobile Power Pros Electrical Distribution Block bus bar 4 Point 5/16 Busbar Bay Marine Supply Mobile Power Pros Electrical Distribution Block bus bar 4 Point 5/16 Busbar Bay Marine Supply Mobile Power Pros Electrical Distribution Block bus bar 4 Point 5/16 Busbar Bay Marine Supply Mobile Power Pros Electrical Distribution Block bus bar 4 Point 3/8 Busbar Bay Marine Supply Mobile Power Pros Electrical Distribution Block bus bar 4 Point 3/8 Busbar Bay Marine Supply Mobile Power Pros Electrical Distribution Block bus bar 4 Point 3/8
4-Post 5/16" (250A) BusBar – Red 4-Post 5/16" (250A) BusBar – Black 4-Post 5/16" (250A) BusBar – Pair of Black & Red 4-Post 3/8" (250A) BusBar – Red 4-Post 3/8" (250A) BusBar – Black 4-Post 3/8" (250A) BusBar – Pair of Black & Red
Model Large 4-Posts Large 4-Posts Large 4-Posts Large 4-Posts Large 4-Posts Large 4-Posts
Color Red Black Pair of Red & Black Red Black Pair of Red & Black
Stud Size Four 5/16" (M8) Studs Four 5/16" (M8) Studs Four 5/16" (M8) Studs Four 3/8" (M10) Studs Four 3/8" (M10) Studs Four 3/8" (M10) Studs
Additional Connection Points Three #8-32 Screws Three #8-32 Screws Three #8-32 Screws Three #8-32 Screws Three #8-32 Screws Three #8-32 Screws
Max Amperage 250 Amps @ 12Vdc 250 Amps @ 12Vdc 250 Amps @ 12Vdc 250 Amps @ 12Vdc 250 Amps @ 12Vdc 250 Amps @ 12Vdc
Max Voltage 48Vdc 48Vdc 48Vdc 48Vdc 48Vdc 48Vdc
Dimensions 1.775 x 6.59 x 1.385 inch (1.943 x 6.59 x 1.385 inch with cover) 1.775 x 6.59 x 1.385 inch (1.943 x 6.59 x 1.385 inch with cover) 1.775 x 6.59 x 1.385 inch (1.943 x 6.59 x 1.385 inch with cover) 1.775 x 6.591 x 1.385 inch (2.056 x 6.591 x 1.385 inch with cover) 1.775 x 6.591 x 1.385 inch (2.056 x 6.591 x 1.385 inch with cover) 1.775 x 6.591 x 1.385 inch (2.056 x 6.591 x 1.385 inch with cover)
Plate & Connection Point Material Nickel Plated Brass Contact Plate & Stainless Steel Connection Posts Nickel Plated Brass Contact Plate & Stainless Steel Connection Posts Nickel Plated Brass Contact Plate & Stainless Steel Connection Posts Nickel Plated Brass Contact Plate & Stainless Steel Connection Posts Nickel Plated Brass Contact Plate & Stainless Steel Connection Posts Nickel Plated Brass Contact Plate & Stainless Steel Connection Posts
Base Material Glass-Filled Nylon Glass-Filled Nylon Glass-Filled Nylon Glass-Filled Nylon Glass-Filled Nylon Glass-Filled Nylon
UL Rating UL 94 HB UL 94 HB UL 94 HB UL 94 HB UL 94 HB UL 94 HB
Busbar Bay Marine Supply Mobile Power Pros Electrical Distribution Block bus bar 4 Point Energy 3/8 Busbar Bay Marine Supply Mobile Power Pros Electrical Distribution Block bus bar 4 Point Energy 5/16 Busbar Bay Marine Supply Mobile Power Pros Electrical Distribution Block bus bar 3 Point Hi-Amp Busbar Bay Marine Supply Mobile Power Pros Electrical Distribution Block bus bar 3 Point Hi-Amp Busbar Bay Marine Supply Mobile Power Pros Electrical Distribution Block bus bar 10 Point 150A Busbar Bay Marine Supply Mobile Power Pros Electrical Distribution Block bus bar 10 Point 150A
Small 4-Post 3/8" (210A) BusBar – Red Small 4-Post 5/16" (210A) BusBar – Black Hi-Amp 3-Point (700A) BusBar – Red Hi-Amp 3-Point (700A) BusBar – Black 10-Point (150A) BusBar – Red 10-Point (150A) BusBar – Black
Model Small 4-Posts Small 4-Posts Hi-Amp 3-Posts Hi-Amp 3-Posts 10-Point 10-Point
Color Red Black Red Black Red Black
Stud Size Three 3/8" (M10) & One 1/4" (M7) Studs Three 5/16" (M8) & One 1/4" (M7) Studs Two 5/16" (M8) & One 3/8" (M10) Studs Two 5/16" (M8) & One 3/8" (M10) Studs Two 1/4" (M7) Studs Two 1/4" (M7) Studs
Additional Connection Points Ten #8-32 Screws Ten #8-32 Screws
Max Amperage 210 Amps @ 12Vdc 210 Amps @ 12Vdc 700 Amps @ 12Vdc 700 Amps @ 12Vdc 150 Amps @ 12Vdc 150 Amps @ 12Vdc
Max Voltage 48Vdc 48Vdc 48Vdc 48Vdc 48Vdc 48Vdc
Dimensions 1.127 x 5.234 x 1.140 inch (1.750 x 7.500 x 2.250 inch with cover) 1.127 x 5.234 x 1.140 inch (1.750 x 7.500 x 2.250 inch with cover) 2.870 x 4.756 x 1.875 inch (1.897 x 5.731 x 3.576 inch with cover) 2.870 x 4.756 x 1.875 inch (1.897 x 5.731 x 3.576 inch with cover) 1.5 x 6.005 x 1.250 inch (1.75 x 7.193 x 1.686 inch with cover) 1.5 x 6.005 x 1.250 inch (1.75 x 7.193 x 1.686 inch with cover)
Plate & Connection Point Material Nickel Plated Brass Contact Plate & Stainless Steel Connection Posts Nickel Plated Brass Contact Plate & Stainless Steel Connection Posts Nickel Plated Brass Contact Plate & Stainless Steel Connection Posts Nickel Plated Brass Contact Plate & Stainless Steel Connection Posts Nickel Plated Brass Contact Plate & Stainless Steel Connection Posts Nickel Plated Brass Contact Plate & Stainless Steel Connection Posts
Base Material Glass-Filled Nylon Glass-Filled Nylon Glass-Filled Nylon Glass-Filled Nylon Glass-Filled Nylon Glass-Filled Nylon
UL Rating UL 94 HB UL 94 HB UL 94 HB UL 94 HB UL 94 HB UL 94 HB
Busbar Bay Marine Supply Mobile Power Pros Electrical Distribution Block bus bar 12 Point 240A Busbar Bay Marine Supply Mobile Power Pros Electrical Distribution Block bus bar 12 Point 240A Busbar Bay Marine Supply Mobile Power Pros Electrical Distribution Block bus bar 12 Point 240A Busbar Bay Marine Supply Mobile Power Pros Electrical Distribution Block bus bar Dual 4 Point Energy Busbar Bay Marine Supply Mobile Power Pros Electrical Distribution Block bus bar Dual 4 Point Energy Busbar Bay Marine Supply Mobile Power Pros Electrical Distribution Block bus bar Dual 4 Point Energy
12-Point (240A) BusBar – Red 12-Point (240A) BusBar – Black 10-Point (240A) BusBar – Pair of Black & Red Dual 4-Post 5/16" & 5/16" (250A) BusBar – Black Dual 4-Post 5/16" & 3/8" (250A) BusBar – Black Dual 4-Post 3/8" & 3/8" (250A) BusBar – Red
Model 12-Point 12-Point 12-Point Dual 4-Posts Dual 4-Posts Dual 4-Posts
Color Red Black Pair of Red & Black Black Black Red
Stud Size One 1/4" (M7) Stud One 1/4" (M7) Stud One 1/4" (M7) Stud Four 5/16" (M8) & Four 5/16" (M8) Studs Four 5/16" (M8) & Four 3/8" (M10) Studs Four 3/8" (M10) & Four 3/8" (M10) Studs
Additional Connection Points Twelve #8-32 Screws Twelve #8-32 Screws Twelve #8-32 Screws Six #8-32 Screws Six #8-32 Screws Six #8-32 Screws
Max Amperage 240 Amps @ 12Vdc 240 Amps @ 12Vdc 240 Amps @ 12Vdc 250 Amps @ 12Vdc 250 Amps @ 12Vdc 250 Amps @ 12Vdc
Max Voltage 48Vdc 48Vdc 48Vdc 48Vdc 48Vdc 48Vdc
Dimensions 1.095 x 5.234 x 1.140 inch (1.095 x 5.5 x 1.25 inch with cover) 1.095 x 5.234 x 1.140 inch (1.095 x 5.5 x 1.25 inch with cover) 1.095 x 5.234 x 1.140 inch (1.095 x 5.5 x 1.25 inch with cover) 1.772 x 5.716 x 2.975 inch (2 x 5.366 x 3.228 inch with cover) 1.772 x 5.716 x 2.975 inch (2 x 5.366 x 3.228 inch with cover) 1.772 x 5.716 x 2.975 inch (2 x 5.366 x 3.228 inch with cover)
Plate & Connection Point Material Nickel Plated Brass Contact Plate & Stainless Steel Connection Posts Nickel Plated Brass Contact Plate & Stainless Steel Connection Posts Nickel Plated Brass Contact Plate & Stainless Steel Connection Posts Nickel Plated Brass Contact Plate & Stainless Steel Connection Posts Nickel Plated Brass Contact Plate & Stainless Steel Connection Posts Nickel Plated Brass Contact Plate & Stainless Steel Connection Posts
Base Material Glass-Filled Nylon Glass-Filled Nylon Glass-Filled Nylon Glass-Filled Nylon Glass-Filled Nylon Glass-Filled Nylon
UL Rating UL 94 HB UL 94 HB UL 94 HB UL 94 HB UL 94 HB UL 94 HB

Busbar Bay Marine Supply Mobile Power Pros Electrical Energy Distribution Block bus barBusbar Bay Marine Supply Mobile Power Pros Electrical Energy Distribution Block bus bar

Busbar Bay Marine Supply Mobile Power Pros Electrical Energy Distribution Block bus barBusbar Bay Marine Supply Mobile Power Pros Electrical Energy Distribution Block bus bar

Busbar Bay Marine Supply Mobile Power Pros Electrical Energy Distribution Block bus barBusbar Bay Marine Supply Mobile Power Pros Electrical Energy Distribution Block bus bar

Busbar Bay Marine Supply Mobile Power Pros Electrical Energy Distribution Block bus barBusbar Bay Marine Supply Mobile Power Pros Electrical Energy Distribution Block bus bar

Recommended Accessories

Electrical Grease Anti-SeizeElectrical Grease Anti-Seize

Insulator Cap Terminal Connection High Temperature ShortageInsulator Cap Terminal Connection High Temperature Shortage

Power Cable Lugs Lug Bay Marine Ring AWG FTZ Supply Mobile Power Pros Tinned Copper Heavy Duty Power Cable Lugs Lug Bay Marine Ring AWG FTZ Supply Mobile Power Pros Tinned Copper Heavy Duty

Starter Cable Lugs Lug Bay Marine Ring AWG FTZ Supply Mobile Power Pros Tinned Copper Heavy Duty Starter Cable Lugs Lug Bay Marine Ring AWG FTZ Supply Mobile Power Pros Tinned Copper Heavy Duty

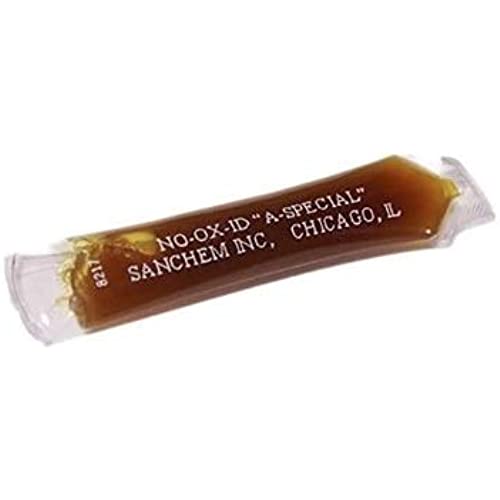

Bay Marine Supply Electrical Grease by Sanchem

NO-OX-ID "A-SPECIAL" is the electrical contact grease of choice for new electrical installations and maintenance. NO-OX-ID electrical contact grease is an electrically conductive grease that keeps metals free from rust and corrosion as well as galling. It is recommended for trouble-free joint connections.

Bay Marine Supply Insulation Caps

Insulation caps are used to protect terminal connections from accidental shortages. They are available in different sizes to fit your needs.

Bay Marine Supply Power Lugs by FTZ

These power lugs are made of 99.9% copper, with a substantial tin plating to offer superior corrosion resistance. The cable size is stamped on each lug. They are premium versions of the most common lug specification. An increased in wall thickness yields greater strength and conductivity. The color bands to guide easy double crimps. With wire size and die setting stamped for corresponding battery terminal when used with FTZ Heavy Duty Crimp Tools.

Bay Marine Supply Starter Lugs by FTZ

These starter lugs are made of 99.9% copper, with a substantial tin plating. Unlike many lugs, the pad is a seamless piece for strength, conductivity, and corrosion resistance. The barrel is slightly flared and chamfered for easy wire insertion. The cable size is stamped on each lug. Available for 8 AWG to 4/0 AWG cables.
