Cllena 300A Bus Bar 3/8 Power Distribution Block 48V 4 Stud Heavy Duty M10 Post Battery Junction Block for Car Rv Truck Marine Boat Vehicles

(873 Reviews)

Price
$35.99

Quantity
(10000 available )

Total Price
Share
17 Ratings
15
2
0
0
0
Reviews
  • hgpilot - MM

    > 24 hour

    Look no further - solid product. Use it as a bus bar off my van battery to run aftermarket lights

  • Diane McClain

    > 24 hour

    I bought this part when upgrading an Alternator on a boat. I needed to add a heavy cable from the high output alternator to the battery but the stud on the starter didnt have room to add another cable. So I bought this terminal block to give me additional places to add wires. This part is high quality and worked perfectly. Its made very well including having a nice backing on the base where it is screwed down to either steel or in my case a fiberglass floor. You wont be disappointed if you purchase this part.

  • Brian S.

    > 24 hour

    Used this power distribution block to clean up under the hood of my big block Challenger. I relocated the battery to the trunk and installed twin electric fans - routed some of the power through this block. The block itself is good quality. Does exactly what I need it to and looks the part. The one I ordered came with wire connectors and those were on the sketchy side. I prefer all weather connectors that are heat and seal.

  • Kenny

    > 24 hour

    Great product works well and fast shipper would buy from again. This was nice I have a side post battery and gives so much more options away from the battery terminal.

  • Walt Ligon

    > 24 hour

    Heavy weight, solid. I’m using for the main ground bus bar in my engine compartment. Nice cover with removable sections for a very clean installation. Recommend.

  • Anthony Holeman

    > 24 hour

    Item was as expected..

  • Danny T.

    > 24 hour

    Quality product. Very heavy duty. Cover with knock outs included. Large lugs, had to drill out and slightly enlarge my 3/8 crimp on connectors to fit on these lugs. The picture I included has 4/0 battery cables with 3/8 crimp on’s for sizing reference.

  • Richard

    > 24 hour

    This made it simple ,connect power cable to one terminal and the others to distribute power, heavy connecting bar, windows remove to allow wire access, nice neoprene backing to prevent grounding issues.

  • Matthew Romero

    > 24 hour

    Works good for my battery relocation as it was the only complelty covered option I could find everything else just kinda sits there exposed......

  • W. Wayne

    > 24 hour

    Just the right thing I needed to un clutter the top of my hard to get to RV batteries . Well made sturdy and clean

Power distribution and connect wiring is no longer difficult.

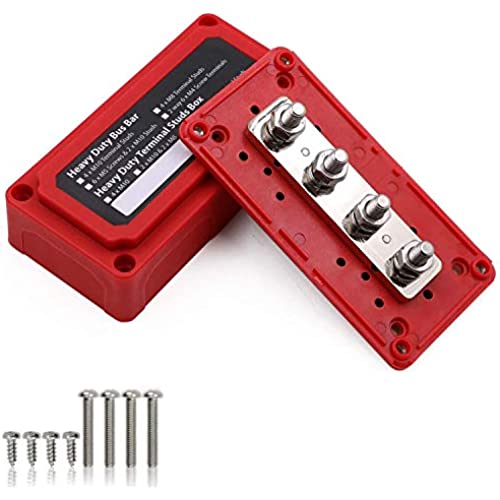

  • Highest amperage rated bus bar (300A) with 4 x M10 (3/8”) terminal studs.

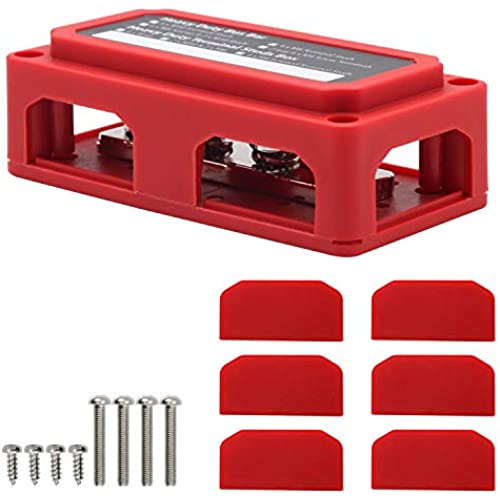

  • Module box design for easy wiring configurations.
  • Glass fiber reinforced Nylon base and enclosure ensures great mechanical strength and durability.
  • Removable windows for unobstructed wiring.

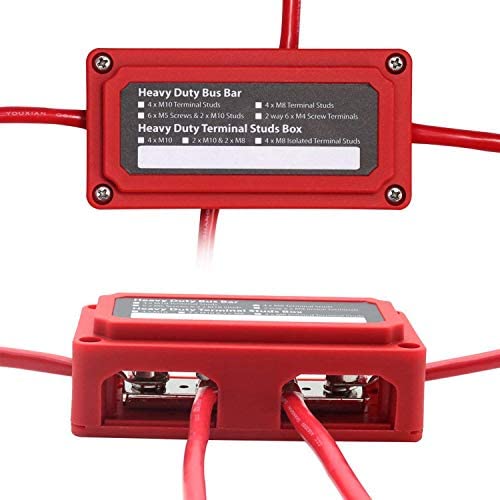

  • Blank write-on space on the top allows easy labeling for each branch.
4076-A+4076-A+

Specifications:

Base & Cover Material: Nylon, Glass Fiber reinforced
Working voltage: DC 12V - 48V
Continuous Currents: 300A (Max)
Terminal Stud Size: 4 x M10 (3/8”)
Bus Material: Brass, Nickel plated
Operating Voltage: DC 48V (Max)
Dimensions (L x W x H): 138 x 69 x 44.5mm, (5.47 x 2.75 x 1.8) inch
Weight: 13.5 ounce
4076-34076-3
