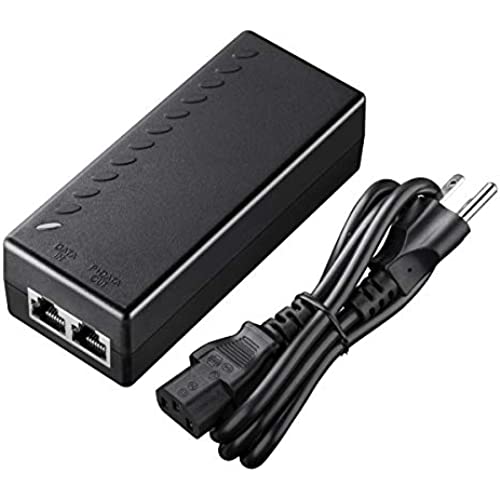

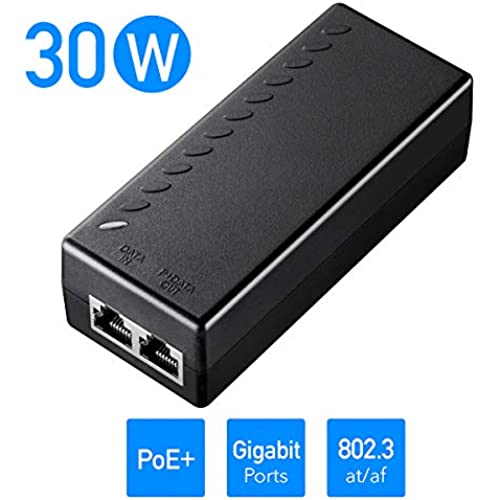

Cudy 2023 New 30W Gigabit PoE Injector Adapter, 30W,10/100/1000Mbps RJ-45, IEEE 802.3af / 802.3at Compliant, up to 100 Meters (325 Feet), PoE200
-
Victor
> 24 hourBeware, POE200 is NOT working with Mikrotik routers! Wasted money!
-
Travis Moore
> 24 hourI used this to power outdoor AP. Works fine
-
J. Cummings
> 24 hourBasic PoE injector. Works as intended. I am using it to power a wireless access point and it does the job. Make sure you check your power ratings before buying any injector to see what they are capable of powering.
-
Wizechatmgr
> 24 hourWorks great
-
Mspindt
> 24 hourHome office environment and needed POE without a POE switch for wireless APs. Cudy just works. Plugged it in, connected Ethernet, and the wireless access points powered up. No configuration, just plug and play.
-
Allen Van Dyke
> 24 hourWorked as advertised.
-
Dennis S
> 24 hourThis is being used for powering a wifi access point that is up in the ceiling without a power outlet nearby. Ive installed this more than two years ago, and its still running without an issue.
-
Palmetto Pat
> 24 hourI bought the Cudy POE200 30W Gigabit PoE Injector to power a Unifi-8 switch and a Unifi AC-PRO Wi-Fi access point. So far, everything is working as expected. If I were to make any negative comment, it would be that the port labels are difficult read (LAN vs Power). Its not a big deal and only noticeable at installation time, but thought it worth mentioning.
-
Mark Clavin
> 24 hourThis was a handy product to enable me to add power to a distant Poe IP camera and worked quite well!
-
Orang gila
> 24 hourNo problem
Input Power Requirements:
- AC Input Voltage: 100~240V
- AC Input Current: 0.5A 100~240V
- AC Frequency: 50 to 60 Hz
Environmental Conditions:
- Operating Ambient Temperature: 0 to 40°C
- Operating Humidity: Maximum 85%, Non-condensing
- Storage Temperature:-40 to 40°C
- StorageHumidity: Maximum 90%, Non-condensing
Cudy 30watt Gigabit 802.11at/af PoE+ Injector
PoE Output :
- Pin Assignment and Polarity: 1/2 (-), 3/6 (+)
- Output Power Voltage: Typical:50V, Support any 802.3af / 802.3at device (44V ~ 50V)
- User Port Power Output: 30W max
Protection:
- Over current protection
- Over load protection
- Over voltage protection
- Anti-interference protection

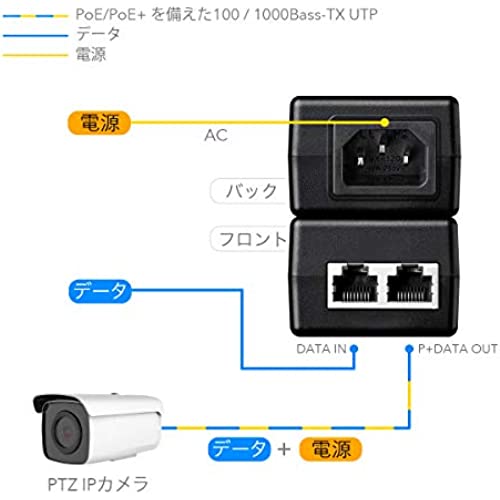

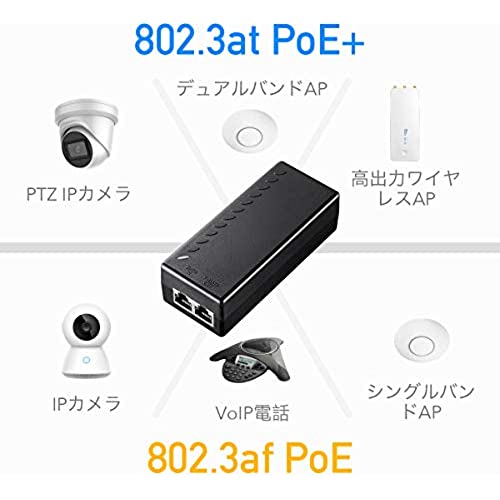

Application Scenario
|
|
|
|
|---|---|---|
SurveillanceWorks with IP Cameras for home and office, small business |
VoIP Conference CallWorks with VoIP phones for business conference |
Wi-Fi CoverageWorks with WiFi APs for office and business |
|
|
|
|
|
|
|
|---|---|---|---|---|---|---|
| POE200 | POE220 | POE300 | POE400 | PoE+ Extender | Outdoor PoE+ Extender | |
| PoE Output | 30 Watts Max, Typical Voltage: 50V, Support any PoE/PoE+ device (44V ~ 50V) | 2 x 30 Watts Max, Typical Voltage: 50V, Support any PoE/PoE+ device (44V ~ 50V) | 60 Watts Max, Typical Voltage: 50V53V, Support any PoE/PoE+ device (44V ~ 53V) | 90 Watts Max，Typical Voltage:56V, Support any PoE/PoE+/PoE++ device (44V ~ 56V) | 22 Watts Max, Support any PoE/PoE+ device | 25 Watts Max, Support any PoE/PoE+ device |
| 802.3af / PoE | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| 802.3at / PoE+ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| 802.3bt / PoE++ | - | - | - | ✓ | - | ✓ |
| Ethernet port | 10/100/1000 Mbps | 10/100/1000 Mbps | 10/100/1000 Mbps | 10/100/1000 Mbps | 10/100/1000 Mbps | 10/100/1000 Mbps |
| Pin Assignment and Polarity | 1/2 (-), 3/6 (+) | 1/2 (-), 3/6 (+) | 1/2 (-), 3/6 (+), 4/5(+), 7/8(-) | 1/2 (-), 3/6 (+), 4/5(+), 7/8(-) | Input: 1/2 (-), 3/6 (+) , 7/8 (-), 4/5 (+). Output:1/2 (+), 3/6 (-) | Input: 1/2 (-), 3/6 (+) , 7/8 (-), 4/5 (+). Output:1/2 (+), 3/6 (-) |
| Input Voltage | 100 ~ 240 V | 100 ~ 240 V | 100 ~ 240 V | 100 ~ 240 V | - | - |
| Over current protection | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Over load protection | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Over voltage protection | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
