HDMI KVM Switch 4 Computers 1 Monitor, Wired Remote & Button Switching, KVM Switches with UHD 4K@30Hz, 3 USB 2.0 Hub, 4 Port KVM Switch for 4 Computers Share 1 Monitor and 1 Set of Keyboard Mouse
-
Steve R. Ferrier
> 24 hourI really like the form factor, only .6 x 4.25 x 2.5. I also love that it has a button for each of 4 PCs; no need to cycle around to connect to the desired PC. Each cable is ~45 lone.
-
Jim Blish
> 24 hourWorks very well for HDMI to HDMI connections. putting an adapter (needed a DP out for one) inline causes video to not work. My guess is because of the integrated USB/HDMI cable. Still very solid KVM and works great if your HDMI from start to finish. (as stated in the description)
-
Nic
> 24 hourOverall this works well, is easy to setup and its nice to have the option of using either the main base station or the wired remote pad. Nice little product and comes with all of the cables. The only issue is that a keyboard may not be 100% plug and play with a Raspberry Pi. Its not a big deal though. In order to make a keyboard work, you have to either add a line of code or uncomment an existing line in the /boot/config.txt file on the Raspberry Pi and then reboot it. The setting to enable is: hdmi_force_hotplug=1. This worked on both a Raspberry Pi 3 & 4. Still a 5-star product.
-
Trevor
> 24 hourThe HDMI KVM Switch is an excellent investment for anyone who needs to work with multiple computers. The device is well-built, easy to use, and offers a high-quality display. Its compatibility with UHD 4K@30Hz and the 3 USB 2.0 hub make it the perfect solution for anyone who wants to share a monitor and peripherals between multiple computers. Highly recommended!
-
Helen
> 24 hourServes its purpose completely, Im happy with it.

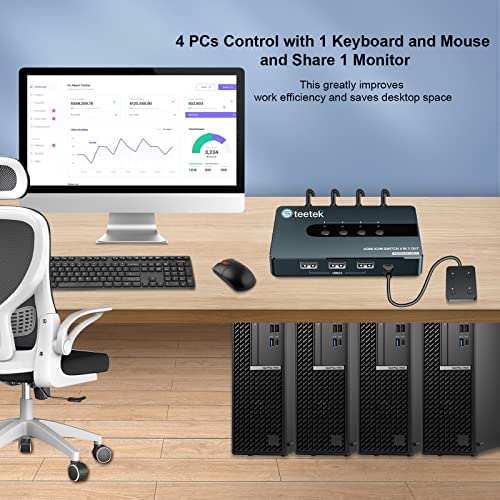

KVM switch for 4 computers 1 monitor
4 computers share 1 monitor and controlled by 1 set of keyboard and mouse. Save your desktop space and increase work efficiency.

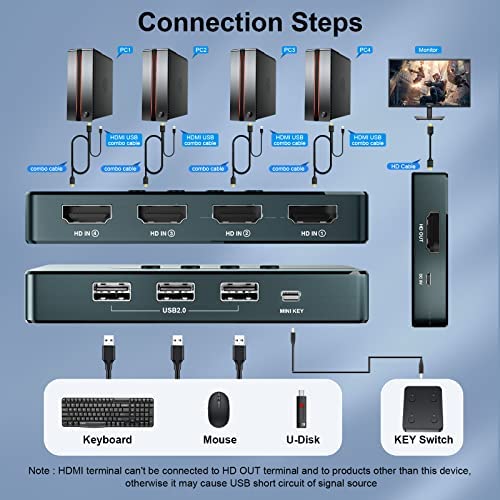

Connection steps:
1. Use the HDMI USB combo cable to connect the computer to the KVM switch, making sure the HDMI & USB terminals of the combo cable are connected to the computer and the HDMI terminals are connected to the HDMI IN port of the switch.
2. Use the HDMI cable to connect the monitor to the HDMI OUT port on the side of the KVM switch.
3. Use the Micro USB cable to connect the computer to the DC 5V port on the side of the switch.
Once all cables are properly connected, press any button on the panel to wake up the KVM switch.
Tip: It is not recommended to use a converter to connect the device to the computer, as this may cause distortion or no image on the monitor.
Correct connection of the combo cable
The HDMI terminal of the HDMI USB combo cable should be connected to each HDMI IN port of the KVM switch, and the HDMI USB terminal of the HDMI USB combo cable should be connected to the computer.
Note: Avoid using the HDMI USB combo cable to connect directly to the computer and monitor, as this may cause a short circuit or other malfunction

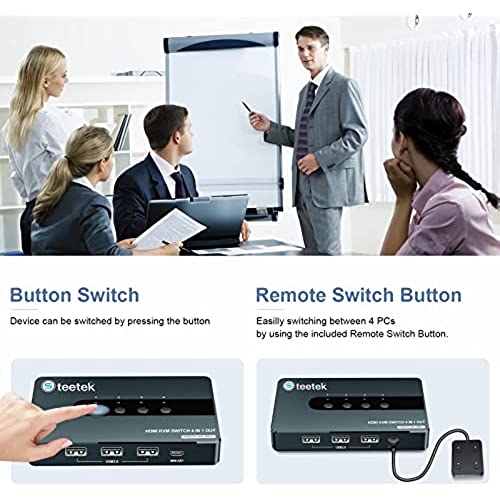

Two switching modes:
Button switching and wired remote switching. Using different switching methods for different situations will save more time and effort. The status light on the KVM switch panel indicates an active computer.
|
|
|
|
|---|---|---|
USB 2.0 HubWith three USB 2.0 ports, the KVM switch supports most peripheral devices such as keyboards, mice, USB drives, printers, etc. |
Convenient and easyPlug and play, no power adapter required and easy to install. |
Delicate and compactCompact size and full functionality, does not take up too much desktop space. |
3180*2160 Resolution
Support 4K@30Hz Ultra HD resolution and backward compatible. Enjoy the ultimate visual feast and feel the shock of ultra high definition picture.
