LENKRAD 90 Amp Circuit Breaker 12V with Manual Reset Switch Button for Boat Marine RV Yacht, Boat Circuit Breakers 12V - 48V DC, Waterproof(Surface Mount)
-
Lil Whip
> 24 hourPut it on my boat to manage anchor winch. Liked the way it was packaged and easy to install. I would buy this brand again.
-
Alexis Hernandez
> 24 hourThis product went great with my setup on my rzr Polaris to add a fuse box for all accessories and now it has a safe setup that will cut off in the event of an over surge thanks to this product.
-
David G Johnson Jr
> 24 hourDoesn’t work
-
Danny warren
> 24 hourRuns my subwoofers great
-
roger demoss
> 24 hourNice
-
Sean Nolan
> 24 hourSeems to be a good quality item.
-
J A R
> 24 hourthe breaker was just like the old one
-
Vida Stark DDS
> 24 hourPerfect for what I needed
-
Jamie J
> 24 hourEasy to install. Exactly as advertised. Rigid.
-
C. Anderson
> 24 hourgood construction, holds my 90 amps so far
Marine circuit breakers

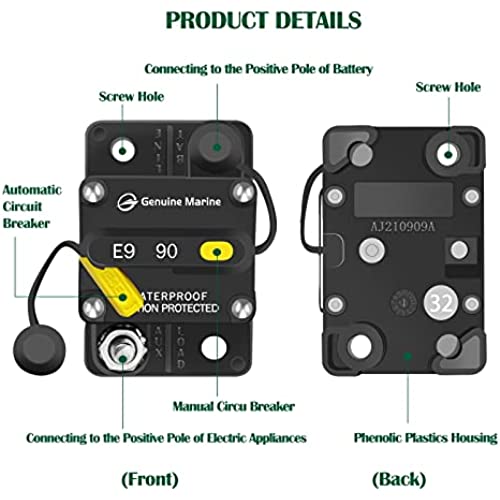

The Lenkrad thermal circuit breakers are compact, weather proof and light weight designed. The highly visible manual reset switch allows for a clear fault indication. Ignition protection and flame resistant materials makes these breakers ideal for installation in gasoline powered vehicles and engine compartments. The terminal studs are front facing for ease of installation and covered with protective caps to prevent short circuits and current jumps.
12V- 48V DC Marine Circuit Breaker
Manual Reset Circuit Breaker
Manual Reset Circuit Breaker
-Power Rating: 30 to 250 Amp
-Voltage: Up to 48V DC
-Manual Reset Button
-Splash and Dust Proof at IP67 grade
-Temperature: -32℃ to 82℃ (-25℉ to 180℉)
-Terminals: 1/4" Stainless Steel Studs
-Embedded installation, protective stud insulator included
-Regulatory Sepcification: S.A.E, J1625, J1171, UL1500
|
|
|
|
|---|---|---|

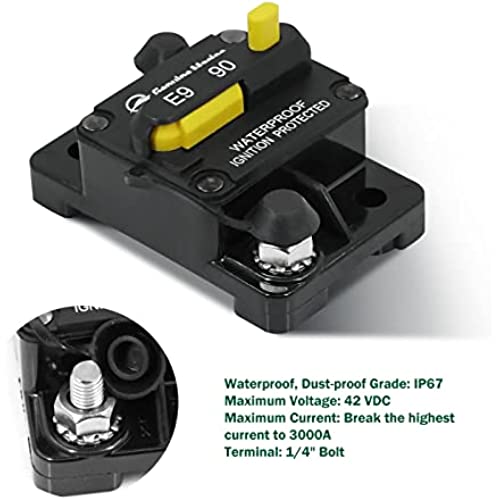

BOLT- 1/4 Inch stainless steel bolts connecting terminal. - Protective stud insulators fully sealed on the back side end. |
ApplicationSuitable for car audio/video system, Boat, trucks, buses, marine and DC sound amplifier system overload protection. |
Surface Mount- Surface Mounted for ease of installation. - Surface mount circuit breaker, the cover protective the stud to be isolated, splash, waterproof IP 67. Prevents excessive current and stops power surges from damaging Amps. |

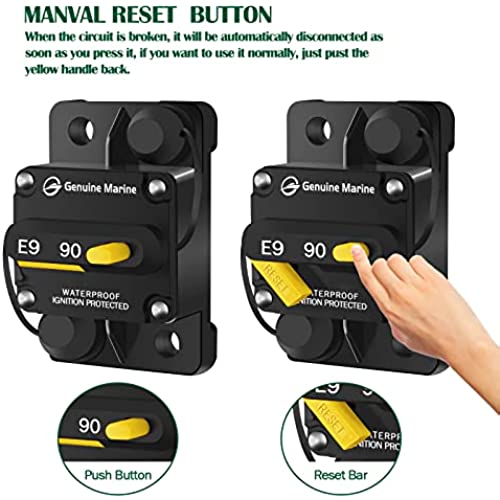

Manual Reset Button
- Yellow manual reset level for increased visibility.
- No need to change the fuse. Manual reset, easy use and safe.
- When the circuit breaker broken, it will be automatically disconnected as soon as you press it

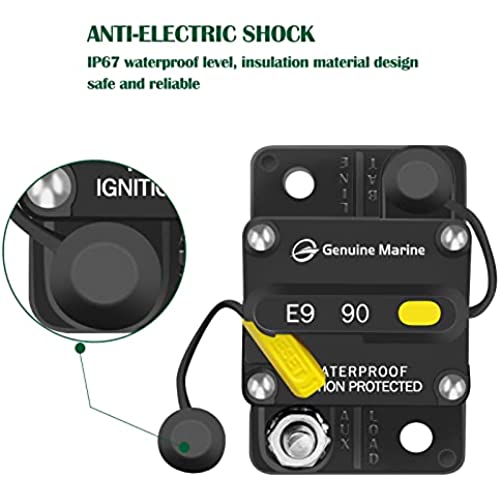

IP67 waterproof level
IP67 waterproof level, design of insulation material, safe and secure.
|
|
|
|
|
|
|---|---|---|---|---|---|
| Surface Mount 30A | Surface Mount 40A | Surface Mount 50A | Surface Mount 60A | Surface Mount 70A | |
| Amp | 30A | 40A | 50A | 60A | 70A |
| Manual Button | ✓ | ✓ | ✓ | ✓ | ✓ |
| Color | Yellow | Yellow | Yellow | Yellow | Yellow |
| Max Voltage | Up to 48V DC | Up to 48V DC | Up to 48V DC | Up to 48V DC | Up to 48V DC |
| Material | Plastic | Plastic | Plastic | Plastic | Plastic |
| Waterproof Level | IP67 | IP67 | IP67 | IP67 | IP67 |
| Actuator Style | Manual Reset | Manual Reset | Manual Reset | Manual Reset | Manual Reset |
| Switch | On/Off | On/Off | On/Off | On/Off | On/Off |
|
|
|
|
|
|
|---|---|---|---|---|---|
| Surface Mount 80A | Surface Mount 90A | Surface Mount 100A | Surface Mount 120A | Surface Mount 140A | |
| Amp | 80A | 90A | 100A | 120A | 140A |
| Manual Button | ✓ | ✓ | ✓ | ✓ | ✓ |
| Color | Yellow | Yellow | Yellow | Yellow | Yellow |
| Max Voltage | Up to 48V DC | Up to 48V DC | Up to 48V DC | Up to 48V DC | Up to 48V DC |
| Material | Plastic | Plastic | Plastic | Plastic | Plastic |
| Waterproof Level | IP67 | IP67 | IP67 | IP67 | IP67 |
| Actuator Style | Manual Reset | Manual Reset | Manual Reset | Manual Reset | Manual Reset |
| Switch | On/Off | On/Off | On/Off | On/Off | On/Off |
