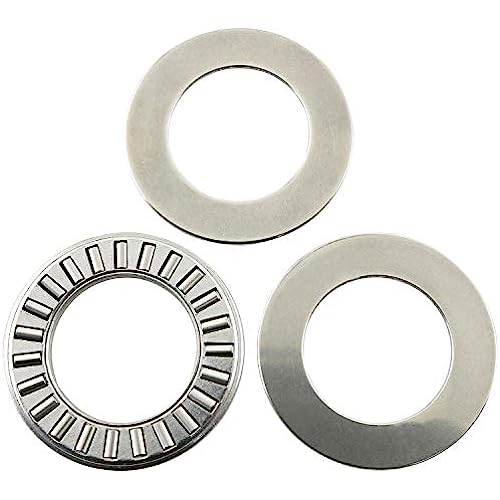

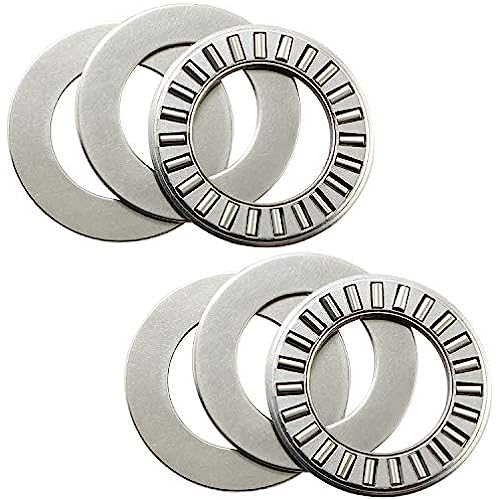

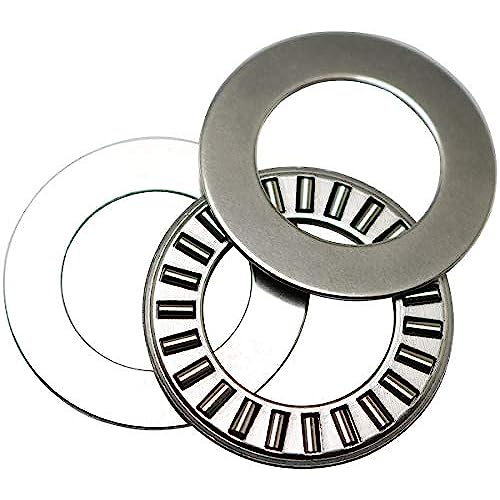

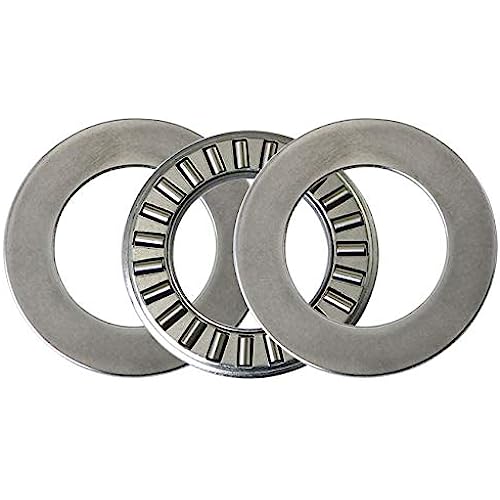

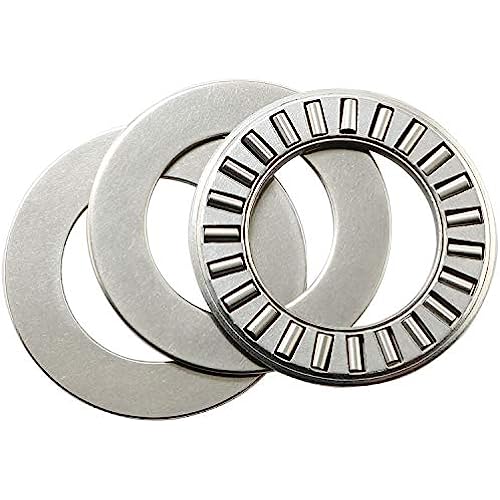

MEETOOT 6 Sets Thrust Needle Roller Bearings NTA1220+2TRA Thrust Needle Roller Bearing with Two Washers 3/4

(0 Reviews)

Price
$7.99

Item Package Quantity
Quantity
(20000 available )

Total Price
Share
27 Ratings
20
1
2
1
3
Reviews
  • flounderpounder

    > 24 hour

    Installed a pair on an old John Deere LA130 that was always a hand full to steer with a small steering wheel and spindles that got dry too easily. The installation gives the opportunity to thoroughly clean and grease the spindles and the addition of the thrust bearings do make it nearly like power steering. I added a suicide knob spinner and can turn with one hand now, which was never possible before. I only use the machine to pull a trailer to pick up sticks before mowing with a Gravely zt-hd but could easily mow with the JD now.

  • Easy rider

    > 24 hour

    Used on mower axle for a problem wheel it fixed it right up !!!

  • Doug Hartman

    > 24 hour

    Worked great

  • Andy S.

    > 24 hour

    These worked fantastic for my riding John Deere lawn mower steering system modification. Simply installed them on the bottom of the vertical shaft where the shaft pivots. Helped my steering tremendously become easier and smoother. Add a little gear oil before install and itll run super smooth.

  • Paul M.

    > 24 hour

    Bought these for my John Deere L130 and did not make anything difference in the steering. I have been a mechanic for 40 plus years and I know how to work on cars small engines etc. To much hassle to send back. Will use the washers for something.

  • Xxx

    > 24 hour

    Greatly improved steering for two rider mowers & a golf cart. Works fine.

  • Shirley

    > 24 hour

    The bearings are now installed. The quality seems quite good... better than the price would suggest. We will see how they hold up in service.

  • John

    > 24 hour

    Made steering much smoother. Will see how they hold up.

  • vasile aghinii

    > 24 hour

    fit exactly mine application -

  • Bob

    > 24 hour

    I was concerned it was going to be too tight a fit on my John Deeres. D130, L110, L100 but it was a perfect fit. On the L110 in particular it made the steering much smoother. 10 minute job if you have all the right tools, 30 if you dont.

Specification:
Type: Thrust Needle Roller Bearing
Bearing No.: NTA1220+2TRA
Material: Steel

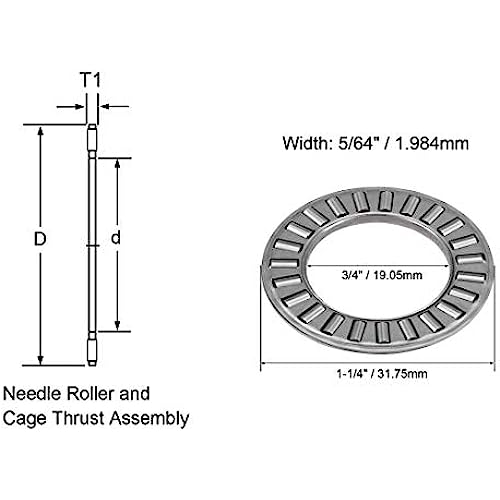

Bore Diameter (d): 3/4" / 19.05mm
Outside Diameter (D): 1-1/4" / 31.75mm
Bearing Thickness (T1): 5/64" / 1.984mm
Washer Thickness (T2): 0.8mm
Total Thickness: 3.584mm
Dynamic Load Capacity (Cr): 7873N
Static Load Capacity (Cor): 27088N
Maximum Rotational Speed (Oil): 14000rpm

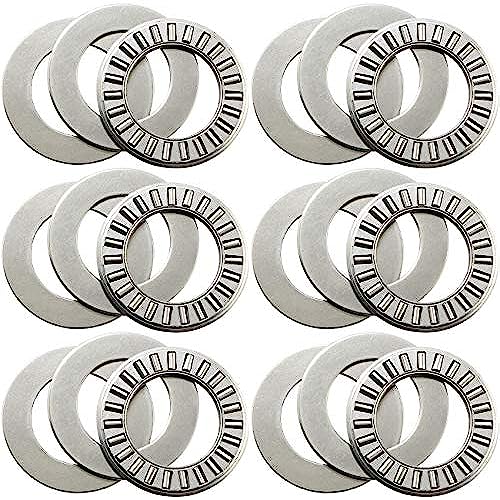

Package includes: 6 x Thrust Needle Roller Bearings NTA1220+2TRA + 12 x Washers

This Needle Roller Thrust Bearings provide a high degree of stiffness within a minimum axial space. It has a smaller cross-section than a standard thrust bearing for use in restricted spaces.
These bearings to accommodate heavy axial loads and peak loads due to small diameter deviation of the rollers within one assembly.
Thrust Bearings can be combined with washers in applications where adjacent components cannot serve as raceways.
Rolling bearings are used in a range of applications from agricultural machinery to conveying equipment, robotics, elevators, rolling mills, ship rudder shafts, and aggregate crushers, among others.
