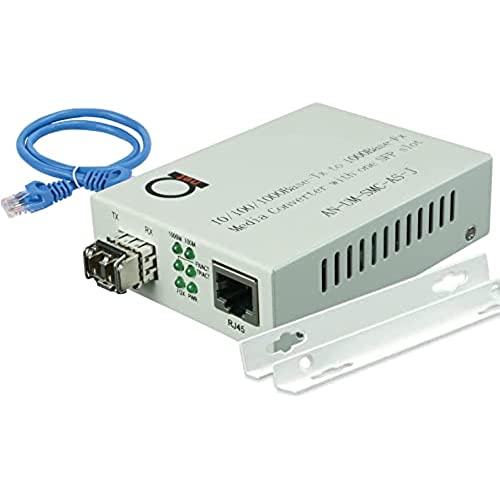

Multimode LC 850 nm Gigabit Fiber Media Converter - Includes SFP 550 m (0.34 Miles) LC – to UTP Cat5e Cat6 10/100/1000 RJ-45 – Auto Sensing Gigabit or Fast Ethernet Speed - Jumbo Frame - LLF Support

(212 Reviews)

Price
$43.88

Quantity
(10000 available )

Total Price
Share
21 Ratings
19
1
0
1
0
Reviews
  • norcalpyroOZ

    > 24 hour

    All worked great for my application

  • Aleksandrs Korsunovs

    > 24 hour

    Great product. I needed a quick solution for connecting the computers at the office with the server, and decided to go for the optic fibre. It was very simple to set up and works flawlessly.

  • John McClelland

    > 24 hour

    These media converters for fiber to Ethernet segments are in place on the ends of a 200 meter segment. They lit up the first time power was applied and required no adjustments to work. They have been in place for a couple of months now with some of the most electrical lighting storms Ive ever had without any problems. Getting them preconfigured with the correct SFP Gbics saved time and money and made for an effortless setup. John

  • Elijah

    > 24 hour

    I have used this converter to connect my home office computer to my server in the basement, and it was simple to setup. Just plugged everything in and it worked. Very nice touch that package includes mounts, I was able to put device on the wall so it wouldnt move around.

  • Levi Nelson

    > 24 hour

    These are simple to use and they work well. I didnt need to change any settings and they are holding up just fine in an industrial environment. Its definitely worth getting to upgrade from a 100Mbps connection to Gigabit like I did.

  • Bryan

    > 24 hour

    Set up and install took minutes, had a small issue that was quickly resolved via the email tech support

  • will

    > 24 hour

    Exactly what I needed.

  • Tony Wheeler

    > 24 hour

    These fiber media convertors work well and I find them more robust than the single fiber versions. I have never had a connection issue with these. I use them on my music streamer. Using fiber to break the copper wire ethernet connection makes the music sound better- especially 44kHz, 16 bit files.

  • Traderhut Games

    > 24 hour

    Works like a champ. First time I hooked it up and it has been in service ever since. I really was thinking it was 10 Gbps, but it is 1 Gbps. Using it for a line from my house to my shop, replacing *4* CAT5 eithernet cables that I ran before (all of which died at some point, I now have armored, fiber cable running there instead and it was about the same price as running Cat6A - which I did and then found out it is hard to terminate (I gave up, but then I only have 35 years experience in IT :-)) This was click click and done.

  • Ryan F

    > 24 hour

    Worked for me. Unlike most other fiber to copper transceivers, this one WILL change speeds between the two interfaces. I have the fiber side running at 1000 Mbit/s and the copper side running at 100 Mbit, both auto-negotiating with their respective peers.

multimode 850nm media converter optic optical multi mode fibre fibra LC ethernet gigabit 1000m media converter fiber poe power over ethernet multimode mm multi mode fibre optic optical converter ST Multimode DIN rail industrial 850nm optic optical ethernet fiber fibre media converter gigabit
LC Multimode Gigabit 550m (0.34 mi) LC Fiber Module Media Converter SC Multimode Gigabit 2 km (1.24 mi) Built-In Fiber Module Media Converter ST Multimode Gigabit 550m (0.34 mi) Built-In Fiber Module Media Converter SC Multimode Gigabit 550m (0.34 mi) Built-In Fiber Module Media Converter PoE/POE+ Multimode Gigabit 550m (0.34mi) LC Fiber Module Media Converter DIN Rail Industrial Multimode ST 850nm Fiber Media Converter
Speed Gigabit Gigabit Gigabit Gigabit Gigabit Gigabit (default) / Fast Ethernet (User Configurable)
Autosensing to 10 / 100 / 1000 Mbit/s
Fiber Type Multi Mode Multi Mode Multi Mode Multi Mode Multi Mode Multi Mode
Fiber Connector LC SC ST SC LC ST
Wavelength 850nm 1300/1310nm 850nm 850nm 850nm 850nm
Power Supply AC adapter in set AC adapter in set AC adapter in set AC adapter in set AC adapter in set (and it can power up your PD PoE device via PoE port) AC adapter in set (it also accepts direct DC input via phoenix connector)
Maximum Reach 0.34 miles (550 m) 1.24 miles (2 km) 0.34 miles (550 m) 0.34 miles (550 m) 0.34 miles (550 m) 0.34 miles (550 m)
Size 70.5mm - 2.77in - (L) X 94mm – 3.7in (W) X 26.5mm – 1.04in (H) 70.5mm - 2.77in - (L) X 94mm – 3.7in (W) X 26.5mm – 1.04in (H) 70.5mm - 2.77in - (L) X 94mm – 3.7in (W) X 26.5mm – 1.04in (H) 70.5mm - 2.77in - (L) X 94mm – 3.7in (W) X 26.5mm – 1.04in (H) 70.5mm - 2.77in - (L) X 94mm – 3.7in (W) X 26.5mm – 1.04in (H) 60* 50* 35 mm (2.36* 1.96* 1.37in) (L*W*H)
DIN rail support
PoE/PoE+ PSE Output

Plug-n-Play Solution to Extend Ethernet over Multimode Cables up to 550m (0.34 miles) – 850 nm Wavelength SFP module pre-installed and ready to use

Extend your Gigabit or Fast Ethernet Network Over Multi Mode Fiber Up to 550 m (0.34 miles) using 850 nm With Ease

AN-UM-SMC-AS-J+MM-SFP-KIT Multimode Fiber Media Converter Will Automatically Detect 10 Mbit/s or 100 Mbit/s Fast Ethernet or 1000 Mbit/s Gigabit port -

You just need plug in the cables and it will work right away!

Powering it up?

Easy, it will come with an AC power adapter in the set, just plug it in!

Sturdy, Stable, and Easy To Use

  • Supports Jumbo Ethernet Frames up to 9000 bytes (if needed, configurable by dip switches);
  • Supports QinQ and VLAN"s - MTU size big enough to pass them through;
  • One 1000Base-SX Multi Mode Dual Fiber port Port with LC type connector - up to 550m (0.34 miles) distance using 850 nm wavelength
  • One 10/100/1000Base-T RJ-45 port Autosensing featured - adapts to all 3 speeds!
  • Compliant with IEEE 10/100/1000Base-T and 1000Base-SX
  • Connect it to Gigabit or Fast Ethernet ports
  • When used standalone (paired with other devices), be sure to check that wavelengths match - 850 nm used in these converters.


Versatile Protocol & Features Support

  • Status LED indicators for Power, Link/Activity, Full-Duplex, and Speed
  • Standards: IEEE802.3z/ab 100/1000/1000Base-T 1000Base-SX
  • Transmission Wavelength – 850 nm, Fiber Connector Type: LC
  • Power supply: 100 to 240VAC 50 to 60Hz
  • Dimensions: 70.5mm - 2.77in - (L) X 94mm – 3.7in (W) X 26.5mm – 1.04in (H)
  • Environment: Relative humidity; 5% to 90%
  • Operating temperature: 0 to 70 degree Celsius (32 - 158 F)
  • Supports LLF feature - Link Loss Feature - (if needed, configurable by dip switches)

More Features, More Convenience and Peace of Mind!

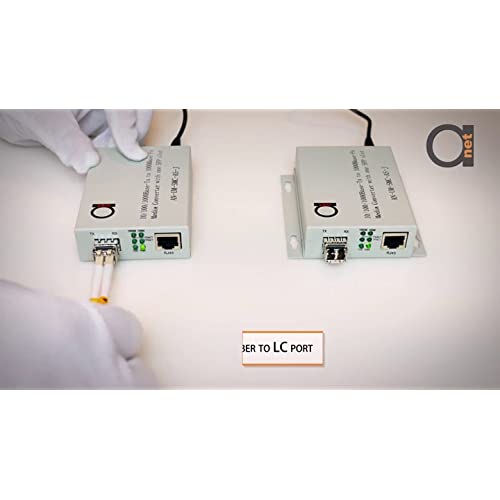

Setup of these units are really easy as the 3 steps shown in picture gallery - all default settings will work for all of your cases, but if you can turn on/off LFF/LFP feature or Jumbo frame - do it!

While in most cases you will have LAN switches, WiFi routers, or regular PC"s connected to media converter UTP port - this versatile converter will still work with any standard Ethernet port device!

Scale Up Your Network as You Grow!

Autosensing10/100/1000 Gigabit Ethernet port auto adapts to Fast Ethernet speed device as well.

BONUS!

+ you get free wall mount ears and rubber buttons in set!
