Noctua NF-A14 iPPC-2000 PWM, Heavy Duty Cooling Fan, 4-Pin, 2000 RPM (140mm, Black)
-
Dogter
> 24 hourNoctua, its all said
-
smu
> 24 hourNoctua fans are great.
-
aaron
> 24 hourtemps dropped 10-15 on every thing .replaced the crappy corsair stocks,have 5 in the case have a couple of 120mm on the way..you get what you pay for ,you know just like a escort service ..
-
Dennis J.
> 24 hourGreat fan, it moves a LOT of air.
-
Jordan Ray
> 24 hourI love Noctua!
-
Sam K.
> 24 hourI was on the market for a high flowing 140MM fan for my case. I had a 86CFM fan, this one pushes 109CFM. Quieter than my previous fan. If it is too much noise at 2000RPMS, I would suggest just tuning your PWM/Smart fan, or setting the fans to quiet/normal/performance.
-
Clayton R
> 24 hourBest PC fan ever.
-
Kal
> 24 hourAs the title suggests is this $30 fan worth your money? Ive compiled some figures that I find interesting and hopefully they will help you in choosing. I purchased this fan to upgrade the NZXT FX-140 PWM fan that came with my Kraken X40 liquid cooler. It was between this fan and the Noctua NF-A14 Premium Quiet fan. I got the PPC version because of its superior static pressure and wider range of RPM, while hoping I can find the perfect balance between cooling performance and sound.
-
80CJ5
> 24 hourthis thing moves some air. i have had zero issues with these fans.
-
Alex Teela
> 24 hourTons of flow! Awesome build quality.

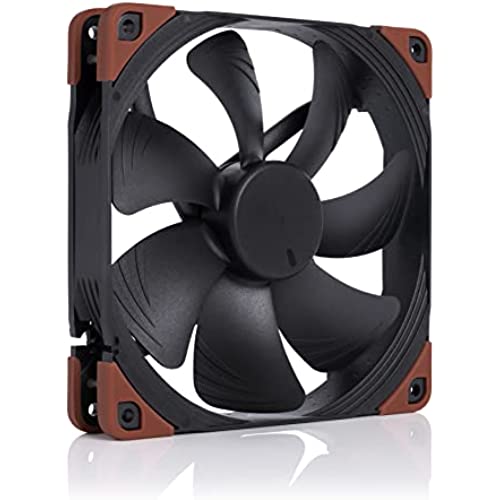

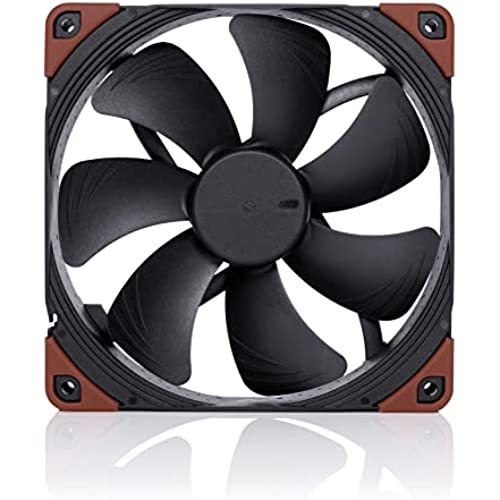

Conceived for industrial heavy duty applications that require enhanced cooling performance and advanced ingress protection, the NF-A14 industrialPPC (Protected Performance Cooling) is a ruggedised high-speed version of the retail model. Thanks to the outstanding aerodynamic efficiency of the NF-A14 design and the use of a novel three-phase motor, the industrialPPC version provides superior airflow and pressure capacity while keeping noise levels and power consumption moderate as against comparable high-speed fans. While its fibre-glass reinforced polyamide construction and certified water and dust protection make the NF-A14 industrialPPC suitable for operation in challenging environments, the renowned SSO2 bearing technology ensures an MTTF of over 150.000hrs. Topped off with Noctua’s trusted reliability, the NF-A14 industrialPPC is an ideal choice for highly demanding applications that require superior flow rates and ultimate dependability.
AAO frame
Noctua"s AAO (Advanced Acoustic Optimisation) frames feature integrated anti-vibration pads as well as Noctua"s proprietary Stepped Inlet Design and Inner Surface Microstructures, both of which further refine the fan"s performance/noise efficiency.
|
|
|
|
|
|---|---|---|---|
2000rpm industrialPPC versionThanks to its elevated 2000rpm top speed, the NF-A14 industrialPPC-2000 provides a significant performance boost over the 1500rpm retail version. Combined with the industrialPPC series" robust polyamide construction and advanced protection features, this makes the fan ideal for challenging industrial applications. |
Three-phase motor designWhile most axial fans use single-phase motors with 4 slots, Noctua"s industrialPPC fans feature a three-phase design with 6 slots, which provides smoother transitions between the slots and thus allows for even higher running smoothness, further reduced vibrations and unprecedented energy efficiency. |

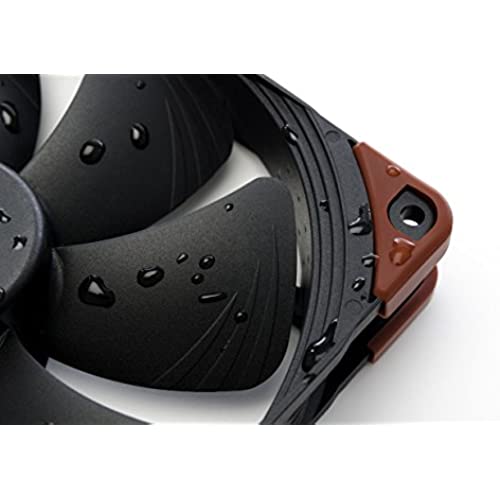

IP52 water- and dust protectionThanks to a special varnish coating that covers the motor and PCB, the NF-A14 industrialPPC complies with the ingress protection rating IP52. This means that it is not only highly dust resistant but also withstands dripping water equivalent to 3mm rainfall per minute. |
Fibre-glass reinforced polyamide constructionBoth the impeller and the frame of Noctua’s industrialPPC fans are made entirely from fibre-glass reinforced polyamide. This material can withstand temperatures up to 140°C and makes the fans even more robust and break-proof than Noctua’s standard fibre-glass reinforced PBT fans. |
Please Note:
The industrialPPC models are high-speed fans for industrial applications. As such, they are not as quiet as other Noctua fans and less suited for low-noise PC builds.
|
|
|
|
|
|
|
|---|---|---|---|---|---|---|
| NF-A14 industrialPPC-2000 | NF-A14 industrialPPC-2000 PWM | NF-A14 industrialPPC-2000 IP67 PWM | NF-A14 industrialPPC-3000 PWM | NF-A14 industrialPPC-24V-2000 Q100 IP67 PWM | NF-A14 industrialPPC-24V-3000 Q100 IP67 PWM | |
| Connector | 3-Pin | 4-pin PWM | 4-pin PWM | 4-pin PWM | 4-pin PWM | 4-pin PWM |
| Voltage | 12V | 12V | 12V | 12V | 24V | 24V |
| RPM | 2000 | Max: 2000 / Min: 500 | Max: 2000 / Min: 500 | Max: 3000 / Min: 800 | Max: 2000 / Min: 500 | Max: 3000 / Min: 800 |
| Acoustical Noise | 31,5 dB(A) | 31,5 dB(A) | 31,5 dB(A) | 41,3 dB(A) | 31,5 dB(A) | 41,3 dB(A) |
| Static pressure | 4,18 mm H₂O | 4,18 mm H₂O | 4,18 mm H₂O | 6,58 mm H₂O | 4,18 mm H₂O | 6,58 mm H₂O |
| Airflow | 182,5 m³/h | 182,5 m³/h | 182,5 m³/h | 269,3 m³/h | 182,5 m³/h | 269,3 m³/h |
| Ingress Protection Rating | IP52 | IP52 | IP67 | IP52 | IP67 | IP67 |
| AEC-Q100 Qualification | X | X | X | X | ✓ | ✓ |
| Size | 140x140x25 mm | 140x140x25 mm | 140x140x25 mm | 140x140x25 mm | 140x140x25 mm | 140x140x25 mm |
