Power Probe PP319FTCW/PPLS01
-
You cant take criticsm
> 24 hourSo easy to use. Best money I have spent on a tool.
-
Charles A.
> 24 hourBest tool for troubleshooting automotive electrical systems
-
Arianna Windler
> 24 hourEasy to be used now I can fix a lot of things my self and save a lot money
-
steve
> 24 hourAwesome, love this thing..
-
Fred in Philly
> 24 hourGreat kit for one preson trouble shooting. Once you figure out the different ways to use it, you will wonder how you got along without it.
-
TEXAS AUTO
> 24 hourIF YOU USE THIS AT WORK AND YOU KNOW HOW TO USE IT YOU WILL BE AMAZED OF WHAT THIS TOOL CAN DO, I BROKE ONE BEFORE THIS ONE AND I ORDERED THIS ONE FROM AMAZON RIGHT AWAY BECAUSE WITHOUT IT TESTING WILL BE HARD AND WILL TAKE LONG TIME.
-
Kenneth J Spara
> 24 hourWorked as advertised. Made troubleshooting so much easier. Found the problem with my electric fuel pump in no time at all. Had to be sure I had a bad pump rather than start throwing very expensive parts at my motorhome.
-
Dave M
> 24 hourI saw this in some videos about specific electrical problems. Many auto techs had these meters. Worth every penny! I also purchased the relay test kit by Lisle.
-
Jack Williams
> 24 hourI bought his for electrical problems on trucks and trailers. It works perfect for that, used it last week and saved a ton of money over taking trailer to rv mechanic. Paid for it self already .
-
Walter
> 24 hourGreat tool saved me hours work

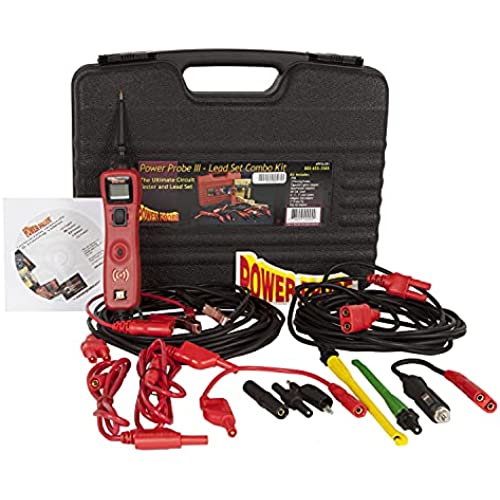

Power Probe 3 Kit includes:
- Power Probe 3
- Optional 20ft Extension Lead (with AS Kit) for a total of 40ft. (Perfect for working on large trucks or trailers)
- Optional Cigarette Lighter Adapter (with AS Kit)
- Battery Clip-Set (for connecting to vehicle battery)
- Convenient Carrying Case
Power Probe 3 manual
Power Probe provides innovative Technology, Engineering, and Knowledge solutions for technicians and consumers.
Power Probe 3
Power Probe 3 uses a 20ft cable which attaches to the vehicle’s battery, allowing the user to perform an electrical test anywhere in, or around the vehicle.
The PP3 is a Voltmeter and Continuity Tester, with Audible & Visual indicators along with two LED headlights to light up your work area. This circuit tester also supplies Battery Voltage or Ground to activate components. The housing is sleek and feels great in your hand. This powerful time-saver tool is perfect for every level of technician.
Features :
- Ability to Power Up Components ● Audible Tones
- Voltmeter ● 12 - 24 Volt Range
- 20 ft. Power Cable ● Bad Ground Indicator
- Continuity Tester ● Short Circuit Indicator
- Relay and Component Tester
|
|
|
|
|---|---|---|
|

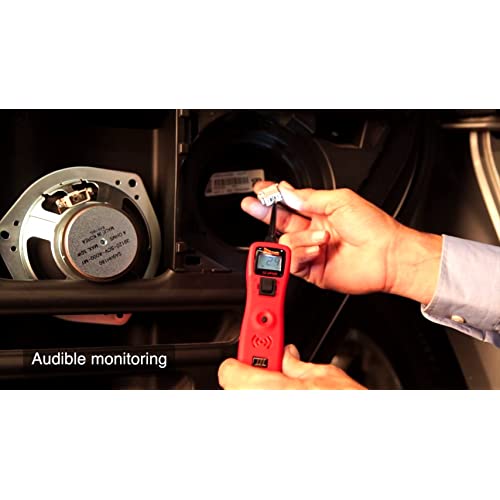

While the PP3 is in Power Probe Mode. Contact the probe tip to a NEGATIVE circuit. The green negative sign “-” LED will light. If the audio feature is turned on, a low pitched tone will sound. |
While the PP3 is in Power Probe Mode, contact the probe tip to a POSITIVE circuit. The red positive sign “+” LED will light and the voltage reading of the circuit will be indicated on the LCD display. If the audio feature is turned on, a high pitched tone will sound. |
1. Connect the PP3 to a good battery. 2. Clip the auxiliary ground clip to the trailer ground. 3. Probe the contacts at the jack and then apply voltage to them. This lets you check the func-tion and orientation of the connector and trailer lights. If the circuit breaker tripped, that con-tact is likely a ground. Reset the circuit breaker by letting it cool down (15 sec.) and depress-ing the reset button until in clicks into place. |
|
|
|
|
|
|
|---|---|---|---|---|---|
| PPKIT03S | PPROKIT01 | PP3LS01 | PP3EZREDAS | PPKIT04 | |
| Products | Power Probe 3 Master Combo Kit | Power Probe 3 Professional Electrical Test Kit | Power Probe 3 Lead Set Combo Kit | Power Probe 3EZ Kit | Power Probe 4 Master Combo Kit |
|
|
|
|
|
|---|---|---|---|---|
| Power Probe 3 | Power Probe 3EZ | Power Probe 4 | The MAESTRO | |
| Voltage Rating | 12-24 VDC | 12-24 VDC | 12-24 VDC | 9-30 VDC |
| Display Type | 1 Line LCD Display | Color Multi-Line LCD Display | Color Multi-Line LCD Display | Color Multi-Line LCD Display |
| Circuit Breaker | Manual Reset | Manual Reset | Self-Resetting | Self-Resetting |
| DC Voltmeter | 0 – 70 VDC | 0 – 70 VDC | 0 – 200 VDC | 0 – 200 VDC |
| DC Min/Max | Min & Max | Min & Max | Avg, Min, Max Simultaneously | Avg, Min, Max Simultaneously |
| AC Voltmeter | 0.1 to 70.0 VAC (Peak-Peak) | 0.1 to 70.0 VAC (Peak-Peak) | 0.01 to 199.9 VAC (RMS or Peak-Peak) | 0.01 to 199.9 VAC (RMS or Peak-Peak) |
| AC Min/Max | No | No | Avg, Min, Max Simultaneously | Avg, Min, Max Simultaneously |
| Ohmmeter | No | No | 0.1 to 10K ohms | 0.1 to 10K ohms |
| Frequency (HZ) | No | No | 1Hz to 9999Hz/PW | 1Hz to 9999Hz/Duty%/PW |
| Injector/Driver/ECT Test Mode | No | No | Yes | Yes (Display Waveforms) |
