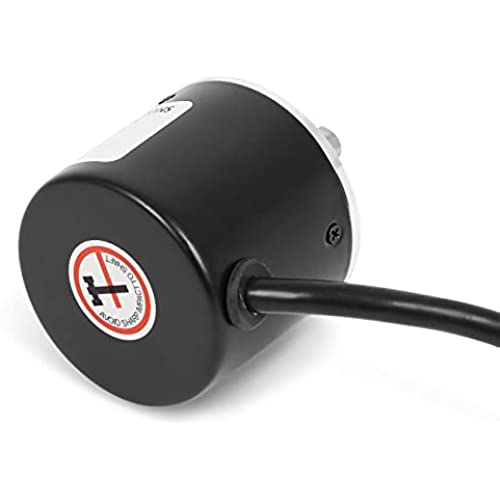

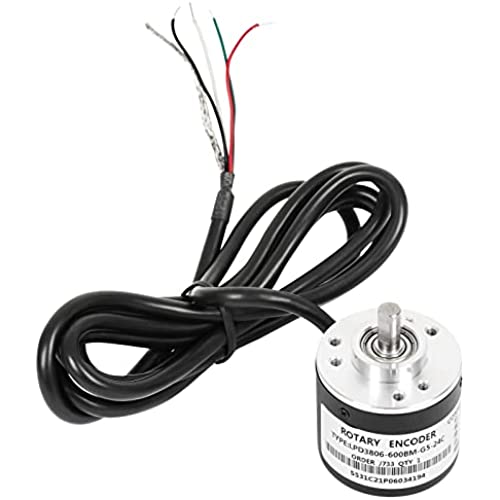

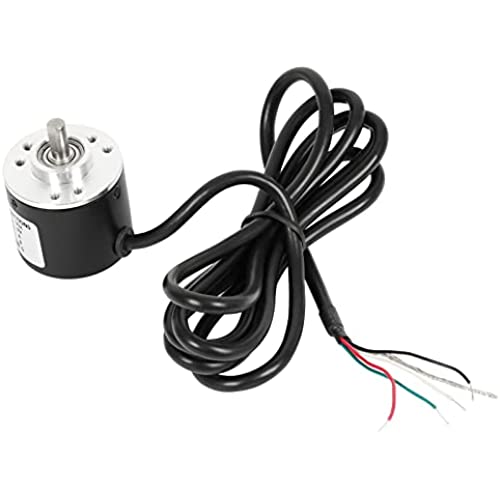

Signswise Incremental Optical Rotary Encoder for Arduino 600P/R Wide Voltage Power Supply DC 5-24V 6mm Shaft Quadrature

(1486 Reviews)
Price
$11.39
Style
Quantity
(20000 available )
Total Price
Share
15 Ratings
13
2
0
0
0
Reviews

  • 2BCFrankReade

    > 24 hour

    Learned this the hard way - Not always reliable on 5V. We use a lot of these, and we always do 12V nowadays. The nice part though, is that the output is (well...cant actually promise this) is open collector, so you can use a pull-up resistor to your controllers voltage, which might be 5V, and run your inputs like that while still powering it by 12V. Check your individual encoder though, because only god knows how the PCB inside is configured, or you..if you open it or measure the outputs on a meter.

  • R. murphy

    > 24 hour

    but for other applications im sure its great;.

  • Tim Trolinger

    > 24 hour

    No issues so far. Good price.

  • Michael Allen Gale

    > 24 hour

    Great item.

  • The Iceman

    > 24 hour

    This thing has no business being this good at this price. Smooth operation - 1440 pules per rev in standard quadrature configuration (2 phase). M3-.5 screws fit the mounting flange. Im feeding this thing 5 volts straight from USB, two encoders and a Teensy board drawing just .3 watts - whats to complain about.

  • XeroxPARC

    > 24 hour

    Love it. Should have picked up some of these years ago...will be bookmarking for the future.

  • Maciek B.

    > 24 hour

    Works well

  • JC

    > 24 hour

    I used the example code in the questions/answers section of this page, and the arduino was missing pulses. Sometimes the counts would sporadically go backwards. Slow revolutions would give hundreds of counts per revolution, but fast revolutions would give 30 counts.

  • PotBelge

    > 24 hour

    Used this for trim wheel control for MSFS2020.

  • linux-works

    > 24 hour

    I am using this with an arduino DIY preamp as a volume control (of all things).

Functions
√ This incremental optical rotary encoder can be used to measure the rotational speed, angle and acceleration of the object and the length measurement.
√ This shaft encoder is suitable for a variety of intelligent control displacement measurement, automatic fixed- length automatic guillotine paper machine, steel cut length control, civilian measured height human scale, students racing robots.

Specification
-Encoder size: 38 x 35.5mm/1.49" x 1.39"
-Shaft: 6 x 13mm/0.23" x 0.51"
-Axis stopper platform: High 5mm, 20mm
-Power source: DC 5-24V
-Maximum mechanical speed: 5000 R / min
-Response frequency: 0-20KHz

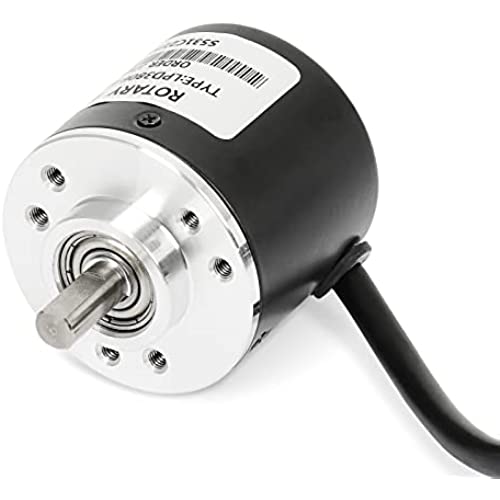

-Fixed empty as: three 3mm screw holes distribution of 120 degrees / or six 3mm screw holes into 60 degree distribution, to the center distance of 14mm.
-Wires length: 150cm

Wiring Output:
A phase, B phase, Vcc positive supply, V0, the shield wire.

Connection:

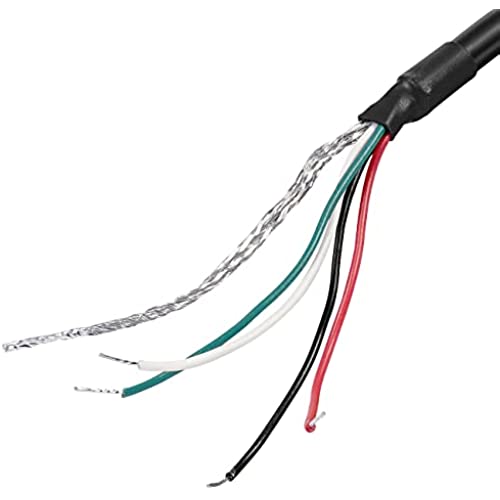

Green = A phase, white = B phase, red = power +, black = V0
Note: AB two -phase outputs must not be connected directly to VCC, otherwise, they will burn the output transistor.

Output
AB two -phase quadrature output rectangular pulse, the circuit output is NPN open collector output type ,the output of this type can and with additonal added pull-up resistor(not included) is directly connected MCU or PLC, such as 51 single or Mitsubishi PLC (PLC input mode should be connected to 0V switch function ).

Note:
If the encoder is not connected to the device can not be directly connected to oscilloscope ( open collector output without pull-up resistor when there is no voltage output) If you want the oscilloscope in AB two-phase output, work with two pull-up resistors(not included).

Package content
1 x 600P/R Incremental Rotary Encoder
