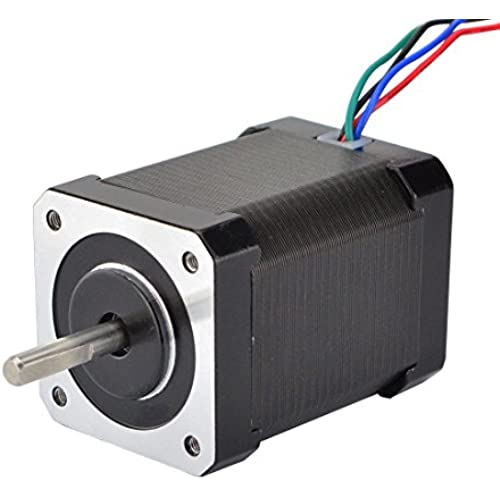

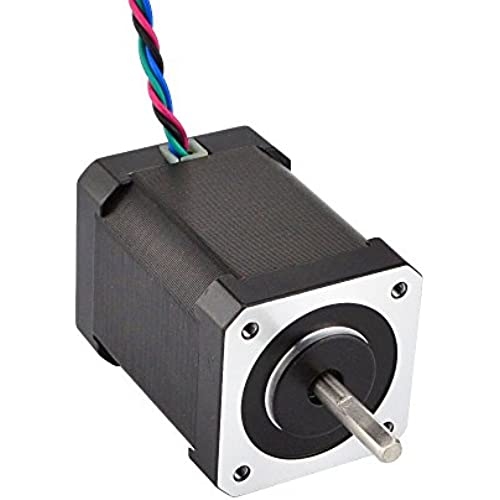

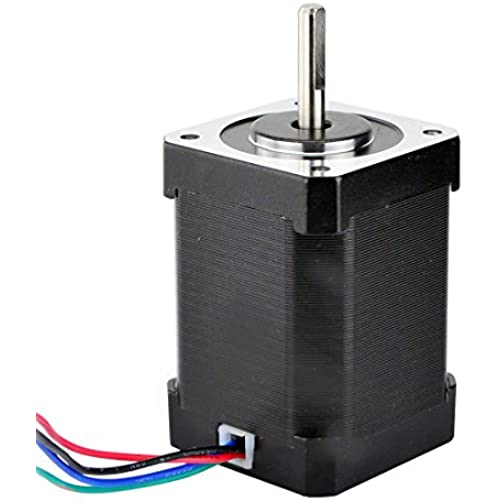

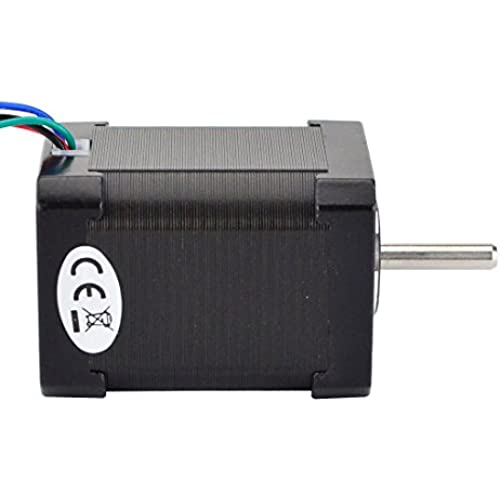

STEPPERONLINE High Torque Nema 17 Bipolar Stepper Motor 92oz.in/65Ncm 2.1A Extruder Motor

(1775 Reviews)

Price
$22.59

Quantity
(10000 available )

Total Price
Share
18 Ratings
16
0
0
0
2
Reviews
  • Ansley Terry

    > 24 hour

    Am in the process of installing with driver by the same manufacturer. They both appear to be well made.

  • Bryan F.

    > 24 hour

    Upgrade for stock stepper motors on 3d printer. Fixed shifting layers, and missed steps.

  • Dan

    > 24 hour

    These are great steppers. I am using them in a new 3D printer build. They have a lot of torque do not get very warm after hours of printing.

  • Nathan M.

    > 24 hour

    I use these guys for my extruder, awesome stepper motor, strong and hasnt given out for the beating I give it.

  • Emelie Davis

    > 24 hour

    no trabajo y lo debolvi

  • Biggies Equipment

    > 24 hour

    Great little motor and after running hard it was not very hot always a good sign of good quality.

  • Benjamin W. Kentopp

    > 24 hour

    Great motor. Will buy again.

  • sultan melibary

    > 24 hour

    strong torque for my project

  • Luke Ashley

    > 24 hour

    Works excellently as an extruder stepper for my high-pressure bowden extruder.

  • R George

    > 24 hour

    I have two drives for the Right Ascension on my telescope. A smaller stepper drive for the clock drive, and this larger more powerful stepper motor to slew the telescope around ( 6 hours in about 10 seconds). A smaller motor doesnt have enough power to overcome the clutch system to turn the telescope, but this larger motor (running at 2400 steps per second) easily turns the telescope.

This is one of strongest bipolar Nema 17 stepper motor with 1.8 deg. step angle (200 steps/revolution).
Each phase draws 2.1A, allowing for a holding torque up to 65Ncm(92oz.in).

Electrical Specification:

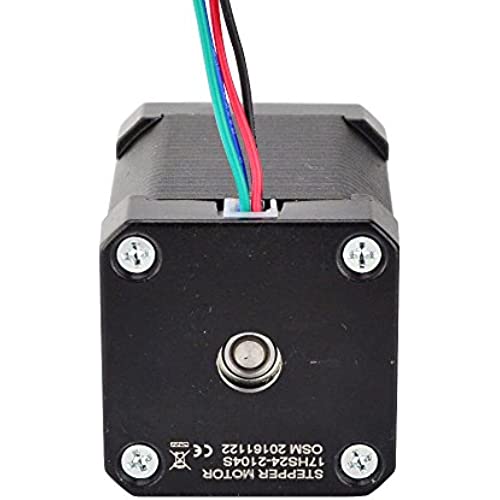

* Manufacturer Part Number: 17HS24-2104S
* Motor Type: Bipolar Stepper
* Step Angle: 1.8 deg.
* Holding Torque: 65Ncm(92oz.in)
* Rated Current/phase: 2.1A
* Phase Resistance: 1.6ohms
* Inductance: 3mH+/-20%(1KHz)

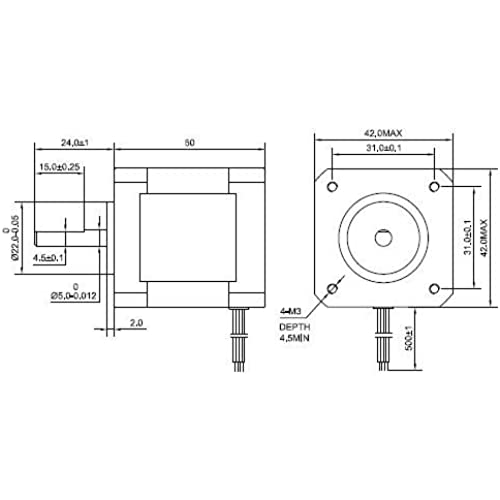

Physical Specification:

* Frame Size: 42 x 42mm
* Body Length: 60mm
* Shaft Diameter: 5mm
* Shaft Length: 24mm
* D-cut Length: 15mm
* Number of Leads: 4
* Lead Length: 500mm
* Weight: 500g

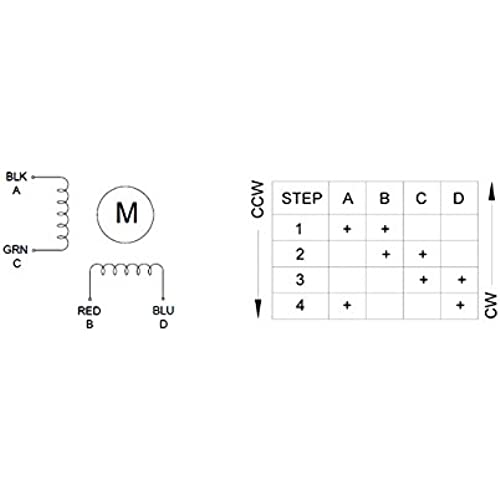

Connection:

Black(A+), Green(A-), Red(B+), Blue(B-)

Warning:

Make sure the motor connect to a constant current or chopper drive controller before you test motor.
Connecting the motor directly to a power supply will destroy the motor.
