Rockford Fosgate P500X1BD Punch 500 Watt Class-bd Mono Amplifier
-
George Hooper
> 24 hourI bought 2 of these...one for my challenger and one for my magnum....they are both pushing a pair of rockford fosgate P2d4 10s run down to one ohm in sealed boxes...and both amps handle it with ease and dont even get warm ....they have been in use for about 4 months now and slam like day 1....the one had a 768w birth certificate and the other was 752w at 1 ohm....
-
Jason Jorgensen
> 24 hourHas some serious power and easy to tune. The tone/setup CD is very helpful in setting up the clip control. Very clean sounding bass!
-
ocie wright
> 24 hourI between dealing with Rockford fosgate Amps n subs for years now, I need to be sponsored by them
-
Andy
> 24 hourI installed this in my c300 2009 Benz. I tapped off the rear sub w/ a line converter into this amp. During their CLEAN install the amp didnt clip on the input full volume.. nore did it clip on the output with the gain all the way up. wild. it kicks hard. I power a 12 P3 punch with it, custom box, absolutely amazing.
-
WAKIII
> 24 hourI hooked it to P3 10 inch dvc subwoofer. The amp is running 742 watts to the speaker on a 1 ohm resistance. Rockford Fosgate is quality, reliable, and affordable. I always have and always will rate them number one overall. It is an American based corporation. If a person wants to spend money on audio equipment it should be from a name brand that has a history of offering a selection of merchandise that will please any audiophile at a price well worth paying!
-
Stephen Coffee
> 24 hourExcellent amp for the $. This is the first RF amp i have bought in probably 15 years, and Im glad I did.
-
Ryan
> 24 hourRockford amps best in the business
-
MDMatty
> 24 hourOverall the Amp is great, the only issue I had was I bought a brand new PLC2 for it and it didnt work, I returned that one and got another brand new one, same thing, so I am wondering if its an issue with the amp, but that is a minor issue I can live with.
-
Prof. Abner Hilpert V
> 24 hourBass is Rockford 12 and it sounds awesome. Worth the $$
-
Mrs. Jessyca Okuneva IV
> 24 hourPerfect amp
Power & Bass On Demand!

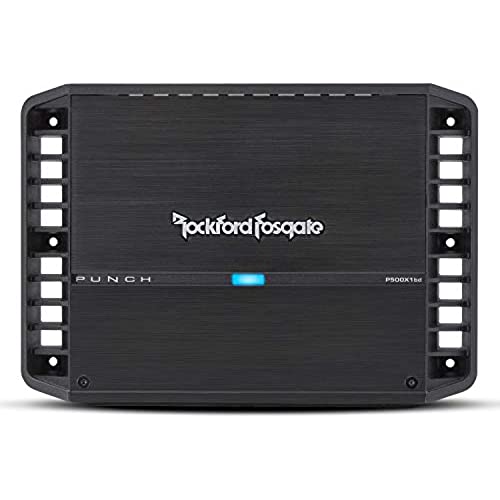

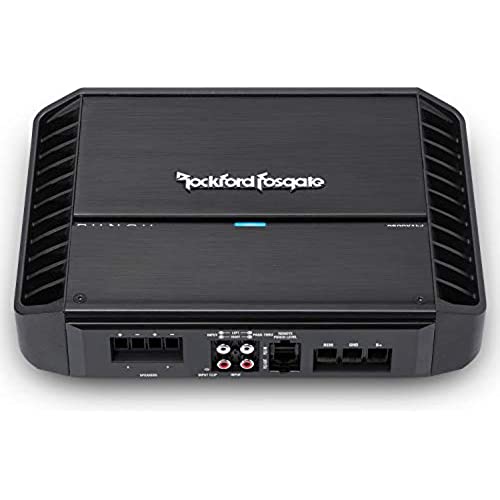

P500X1BD
The Punch P500X1bd is a mono amplifier capable of producing 500 Watts into a 1-Ohm load.
Due to its dedicated low frequency response, this amplifier is optimized for mid-bass speakers or subwoofers only.

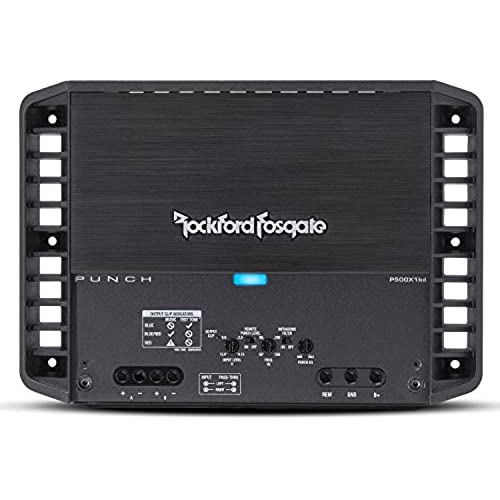

With its super efficient Class-BD circuit topology, the P500X1bd will drop some serious BASS! The stealth top mounted control panel not only provides a sleek finished look to the amp, but it also protects the vital controls.
Our custom heat sink design uses high aluminum mass where it is needed most to maximize heat transfer from the output MOSFETS to the surrounding air, keeping the circuitry cool even under high power and output demand.
- Punch 500-Watt Full-Range Mono Amplifier
- Rated Power: 150 Watts x 1 @ 4-Ohm OR 300 Watts x 1 @ 2-Ohm OR 500 Watts x 1 @ 1-Ohm
- 12dB/octave Butterworth crossover
- Power Wire Gauge: 4 AWG
- Speaker Wire Gauge: 8 AWG to 18 AWG
- Optional Punch Level Control Ready (PLC2 sold separately)
- Recommended Fuse (not included): 80 A
- Dimensions (H x W x D): 2.38" x 7.76" x 11.03"
C.L.E.A.N. Set-Up
C.L.E.A.N. (Calibrated Level Eliminates Audible Noise) is our patented circuit with in/out clip LEDs to help match a source to amp and optimize output
Punch EQ
Delivers more bass where you want it most by allowing up to 18dB of boost adjustment at 45Hz
Multi-Signal Inputs

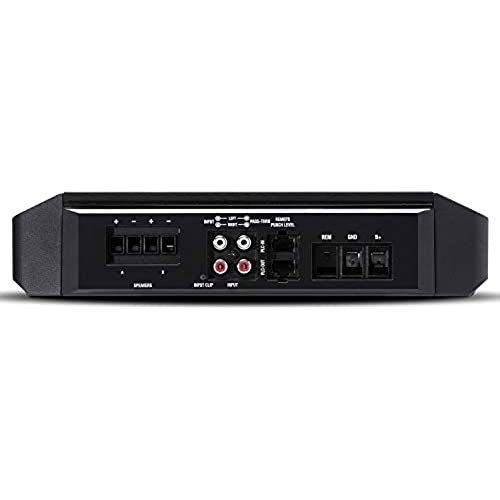

The RCA inputs of this amp can accept both Hi or Low level audio signals without the need of a signal converter
|
|
|
|
|
|
|
|---|---|---|---|---|---|---|
| P1000X1bd | P500X1BD | P300X1 | P1000X2 | P500X2 | P300X2 | |
| Number of Channels | 1 | 1 | 1 | 2 | 2 | 2 |
| Total Power (RMS) | 1000 | 500 | 300 | 1000 | 500 | 300 |
| Bridgeable | No | No | No | Yes | Yes | Yes |
| Circuit Topology Class | Class BD | Class BD | Class A/B | Class A/B | Class A/B | Class A/B |
| Cooling | Convection | Convection | Convection | Convection | Convection | Convection |
| Recommended Fuse (not included) | 140 A | 80 A | 50 A | 140 A | 80 A | 50 A |
| Dimensions (H x W x D) | 2.38" x 7.76" x 13.28" | 2.38" x 7.76" x 11.03" | 2.38" x 7.76" x 9.86" | 2.38" x 7.76" x 15.03" | 2.38" x 7.76" x 13.28" | 2.38" x 7.76" x 9.86" |
| Rated Power | 300 Watts x 1 @ 4-Ohm | 150 Watts x 1 @ 4-Ohm | 200 Watts x 1 @ 4-Ohm | 300 Watts x 2 @ 4-Ohm | 150 Watts x 2 @ 4-Ohm | 100 Watts x 2 @ 4-Ohm |
| (or) | 500 Watts x 1 @ 2-Ohm | 300 Watts x 1 @ 2-Ohm | 300 Watts x 1 @ 2-Ohm | 500 Watts x 2 @ 2-Ohm | 250 Watts x 2 @ 2-Ohm | 150 Watts x 2 @ 2-Ohm |
| (or) | 1000 Watts x 1 @ 1-Ohm | 500 Watts x 1 @ 1-Ohm | 1000 Watts x 1 @ 4-Ohm Bridged | 500 Watts x 1 @ 4-Ohm Bridged | 300 Watts x 1 @ 4-Ohm Bridged |
|
|
|
|
|---|---|---|---|
| P600X4 | P400X4 | P1000X5 | |
| Number of Channels | 4 | 4 | 5 |
| Total Power (RMS) | 600 | 400 | 1000 |
| Bridgeable | Yes | Yes | Yes (front/rear channels) |
| Circuit Topology Class | Class A/B | Class A/B | Class A/B + Class BD (Sub) |
| Cooling | Convection | Convection | Convection |
| Recommended Fuse (not included) | 100 A | 60 A | 150 A |
| Dimensions (H x W x D) | 2.38" x 7.76" x 13.28" | 2.38" x 7.76" x 11.03" | 2.38" x 7.76" x 15.03" |
| Rated Power | 75 Watts x 4 @ 4-Ohm | 50 Watts x 4 @ 4-Ohm | 75 Watts x 4 + 150 Watts x 1 @ 4-Ohm |
| (or) | 150 Watts x 4 @ 2-Ohm | 100 Watts x 4 @ 2-Ohm | 125 Watts x 4 + 300 Watts x 1 @ 2-Ohm |
| (or) | 300 Watts x 2 @ 4-Ohm Bridged | 200 Watts x 2 @ 4-Ohm Bridged | N/A + 500 Watts @ 1-Ohm |
