Huepar 3D Cross Line Self-leveling Laser Level 3 x 360 Green Beam Three-Plane Leveling and Alignment Laser Tool, Li-ion Battery with Type-C Charging Port & Hard Carry Case Included - B03CG Pro

(1922 Reviews)
Price
$93.58
Style
Quantity
(20000 available )
Total Price
Share
417 Ratings
344
33
10
17
13
Reviews

  • Samuel vergara

    > 24 hour

    excelente embalaje este producto es muy útil me impresiona, Lo recomiendo al 100%

  • aldemar echeverry

    > 24 hour

    Buenísimo y a mitad de precio de las demás marcas

  • CS

    > 24 hour

    about 10ft of use outdoors when sun shining

  • Savion Wintheiser DDS

    > 24 hour

    I like the hard case. The options. The brightness

  • Prof. Martina Runolfsson III

    > 24 hour

    I appreciate all the extra work this tool saves me

  • sergio santiago

    > 24 hour

    This laser is awesome, bright and accurate, 7 full bathroom remodels with this laser and I don’t have any complaints.

  • Ricardo Mar

    > 24 hour

    Excelente producto y el presio muy cómodo. tanto que compre el mío y 3 mas para mis compañeros de trabajo

  • Nicole Reed

    > 24 hour

    Im so glad I got this green light laser, its easy to use and we can see the green light way better than our old red light laser!!!

  • Carla Cross

    > 24 hour

    Nice product. Light weight, levels fast and accurate, at a very reasonable price. Comes with a very sturdy case for handling and storage.

  • Alex R.

    > 24 hour

    Power button is not accessible when you used the laser right on the floor to do layouts.

11

Specifications for Huepar 3D Green Laser Level B03CG Pro:

  • Projection: 3 x 360° Green Laser Lines
  • Laser Class: Class 2 (IEC/EN60825-1/2014), <1mW power output
  • Laser Wavelength: 505-520nm
  • Horizontal / Vertical Accuracy: ±1/9 Inch at 33 Feet
  • Leveling / Compensation Range: ±4°
  • Leveling Time: 3s
  • Working Distance: 85 feet (300 LUX), 200 feet with Huepar Laser Detector LR-5RG / LR-6RG
  • Power Source: 3.7V / 5200mAh Li-ion Battery
  • Reference Operating Time: About 8 hours with all laser beams on
  • Mount Size: 1/4"-20
  • IP Rating: IP54 dust-proof, waterproof and shockproof, reliable and tough
  • Operation Temperature Range: Between -10℃ and +50℃
  • Storage Temperature Range: Between -20℃ and +70℃

WARNING: Do not point the laser beam directly into the eyes. The device is a laser class 2 laser product according to IEC / EN60825-1 / 2014. It is allowed to use the device without any further safety precautions. The eye protection is usually secured by aversion reactions and blink reflex.

Almost Unlimited Field of Application:

  • One 360° horizontal and two 360° vertical planes enable users to cover the floor, wall, ceiling all around the room.
  • You can use the intersection of the laser lines to project reference points and divide surfaces at right angles.

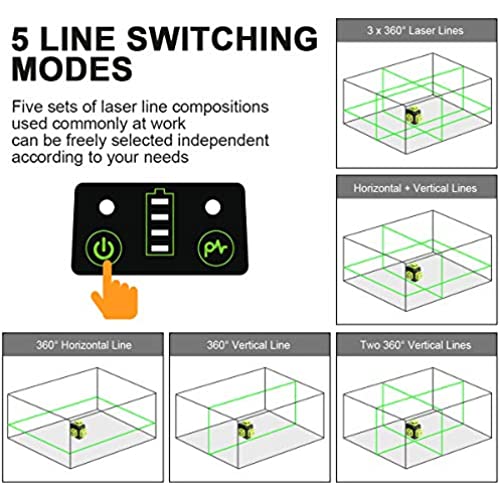

  • Short press operation button to switch the laser line combinations in turn.
  • The three laser lines can be selected individually depends on job site applications.
11

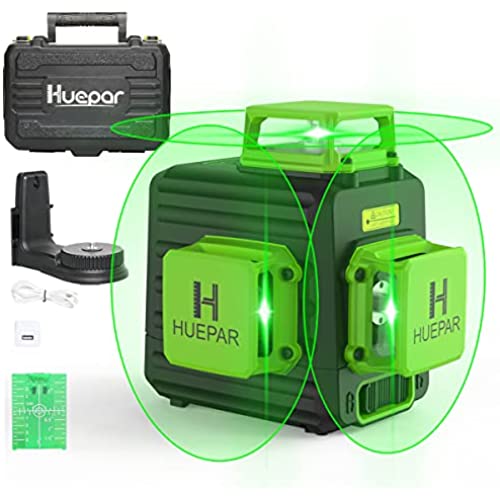

Package Contents:
  • 1 x Huepar B03CG Pro Laser Level
  • 1 x Rechargeable Lithium Battery 3.7V / 5200mAh
  • 1 x Type-C Power Cord
  • 1 x Power Adapter
  • 1 x 360° Magnetic Pivoting Base
  • 1 x Green Laser Target Plate
  • 1 x Multilingual User Manual
  • 1 x Hard Carry Case

Smart Pendulum - Self-leveling Mode & Manual Mode:

Self-leveling Mode:

When the laser tool is switched to the unlocked position, the self-leveling mode is enabled.

The laser beam will flash when the tool is beyond self-leveling range ± 4°.

Manual / Tilt Mode:

When the pendulum locked, the laser tool can be placed for alignment at any angle.

The laser beam will blink every 3-5 seconds to remind you that it"s not self-leveling now.

11

11

11

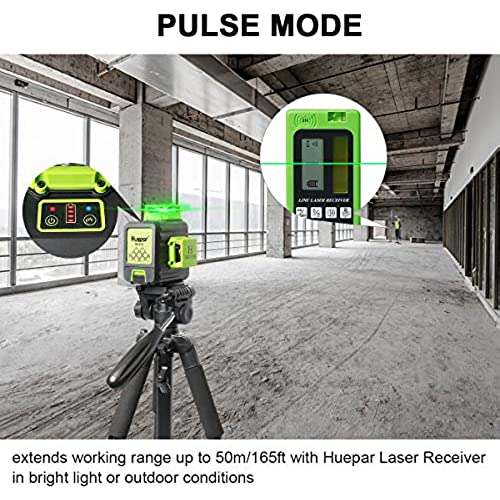

Power-saving Outdoor Pulse Mode:

  • Turn ON the pulse mode: After power ON, short press "P" button to switch ON/OFF the pulse mode.
  • Pulse mode extends the working range up to 200 feet in brighter working conditions when using with Huepar Line Laser Detector
  • When the pulse mode is activated, the laser beams are dimmer, the pressure on eyes is less when working at close range, and the working time can be appropriately extended
  • It is compatible with Huepar LR-6RG / LR-5RG Line Laser Receiver (need to purchase separately) only.
  • Keep the pulse mode on when using with a receiver.

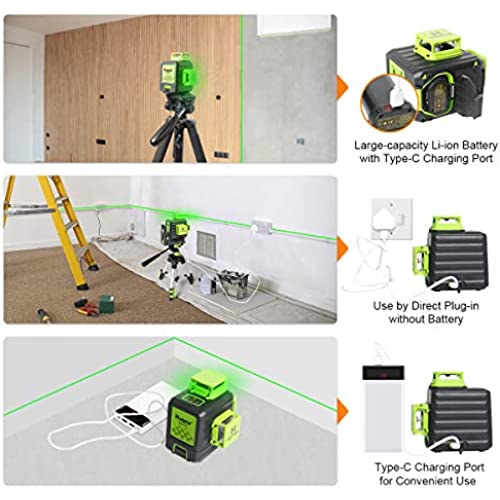

Type-C Charging Port:

  • This laser tool utilizes the included large capacity of 3.7V / 5200mAh lithium battery and provides up to 8 hours of running time.
  • The lithium battery with the Type-C charging port can be charged separately.
  • Direct input charging: When taking out the battery, the laser tool can be used at the job site by plugged in.
  • Four battery indicators on keypad allow users to know the current battery volume.
  • Charging protection helps prevent from overcharging.

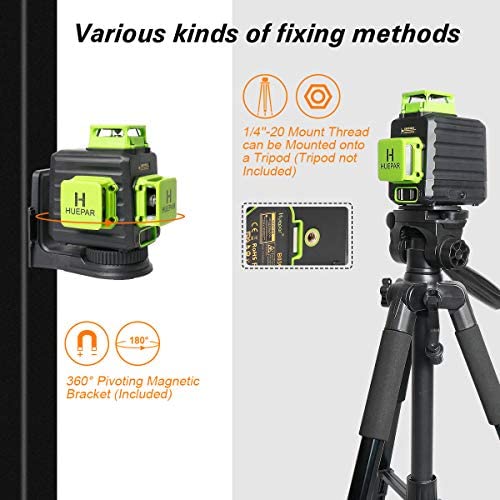

More Installation Methods:

  • 1/4"-20 female thread on the laser level can help to mount it to the tripod or laser mounting pole.
  • 360° Strong Magnetic Pivoting Base: Allows being adsorbed onto metal track and steel. The base provides 360° free rotation to meet different angles required.
  • 1/4"-20 and 5/8"-11 mounting threads on the bottom of the bracket for temporary fastening in place or being fixed on tripod or laser mounting pole.
  • Replaceable Protective Cover: The laser windows can be removed and replaced with a screwdriver.
  • Green Target Plate: Increases the visibility of the laser beam.

11

11

11

Bright Green Laser Diode:

  • This cross line laser adopts the bright Osram’s green laser unit, which is resistant to temperature changes and has higher stability.
  • At the same power, the green laser is twice bright as the red laser, with a working range up to 85 feet (300LUX) of accuracy within ±1/9 Inch at 33 Feet.

Flat Top Cover Design:

  • Designed with the flat top cover, this laser tool projects 360° laser lines for tiling or ceiling installation at 10mm from the wall and ceiling.
  • Huepar PV10 + Bracket is recommended for quick setup in wall and ceiling applications (ASIN: B07X2K3TVW, need to purchase separately)
  • The laser windows can be removed and replaced with a screwdriver.

Durable Design:

  • The laser tool is completely covered by TPR soft rubber, which delivers soft touch and stronger protection.
  • The kit comes with a hard carry case bringing much more convenience to carry and store the laser tool.
  • IP54 water/dust resistance ensures you work well in hazardous working conditions.
S04CG-L S03DG-L S03CG-L B03CG 1 S02CG
S04CG-L S03DG-L S03CG-L B03CG-Pro B02CG S02CG
Number of Lines 4 Lines 3 Lines 3 Lines 3 Lines 2 Lines 2 Lines
Expanded Angle H: 360°/ V: 360° H: 360°/ V: 360° H: 360°/ V: 360° H: 360°/ V: 360° H: 360°/ V: 360° H: 360°/V: 130°
Line Accuracy ±1/9 In. at 33 Ft. ±1/9 In. at 33 Ft. ±1/9 In. at 33 Ft. ±1/9 In. at 33 Ft. ±1/9 In. at 33 Ft. ±1/9 In. at 33 Ft.
Dot accuracy X X X X X X
Line Switching ✓ ✓ ✓ ✓ ✓ ✓
Pulse Laser Receiver Mode ✓ ✓ ✓ ✓ ✓ ✓
Power Source Li-ion Battery & 4 * AA(LR6) Li-ion Battery & 4 * AA(LR6) Li-ion Battery & 4 * AA(LR6) Li-ion Battery Li-ion Battery Li-ion Battery & 4 * AA(LR6)
Mount size 1/4""-20 1/4""-20 1/4"" & 5/8" 1/4""-20 1/4""-20 1/4"" & 5/8"
